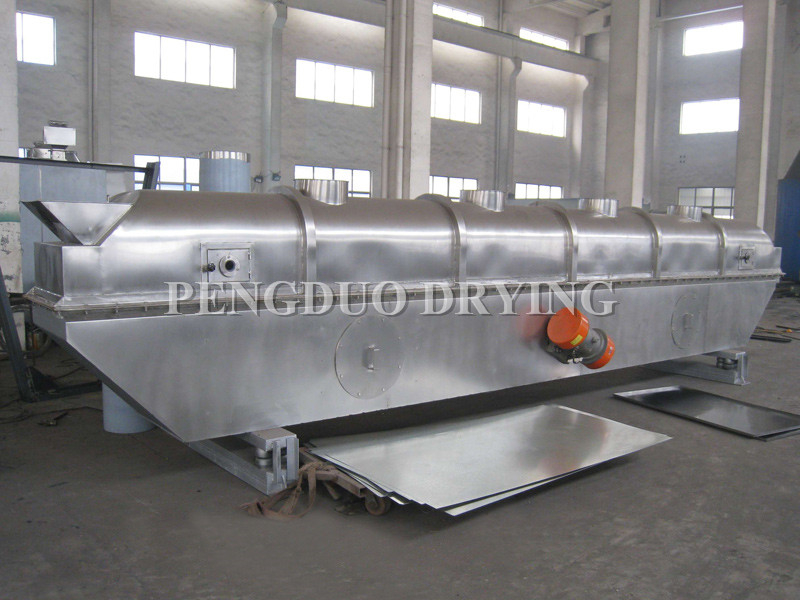

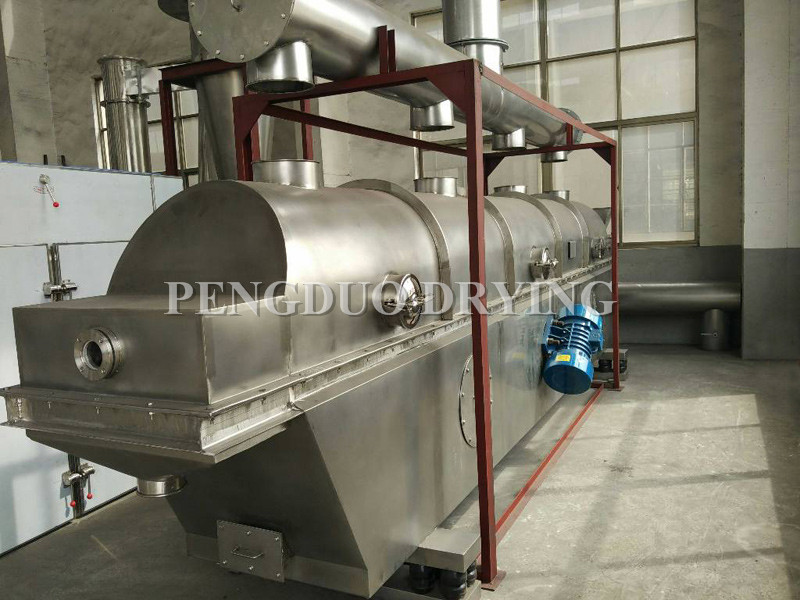

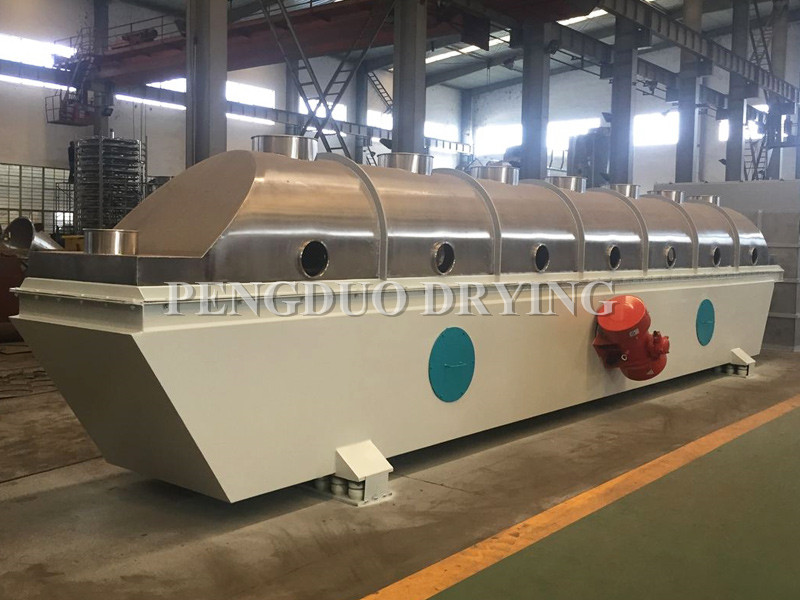

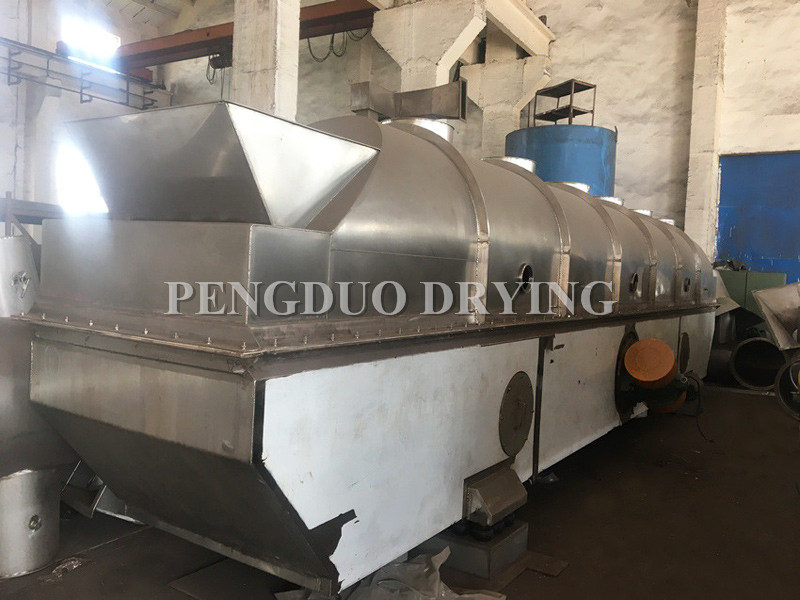

ZLG Vibration Fluidized Bed Dryer

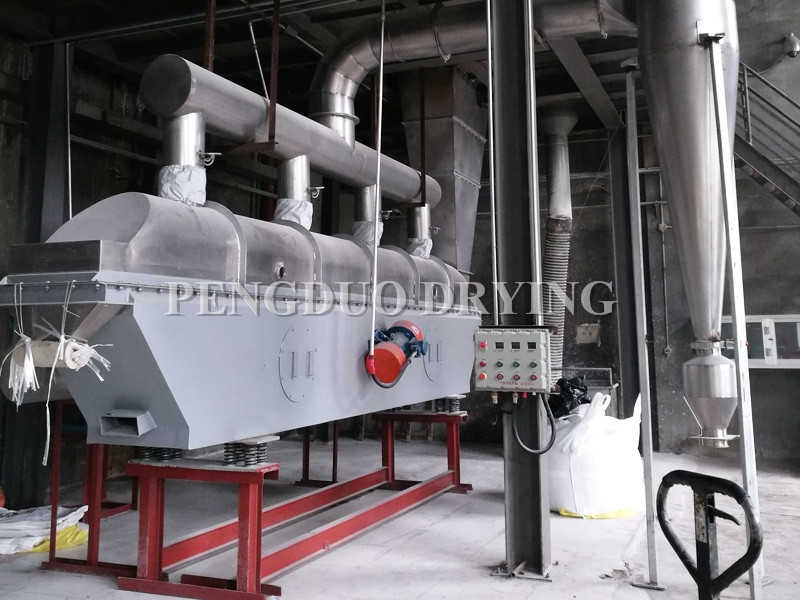

The wet material enters the drying chamber through the feed inlet. Under the action of vibration force, the material is fluidized and continuously conveyed forward along the horizontal fluidized bed. Hot air flows upward through the bed, exchanging heat with the wet material. The humid exhaust air is filtered by a cyclone separator, while the dried product is discharged from the discharge port.
This machine combined drying & cooling in one unit — ready for immediate packaging

Model:
ZLG

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

|

Product Features

Vibration Drive System – Powered by vibration motors for smooth operation, low noise, easy maintenance, and long service life.

Uniform Fluidization – No dead zones or channeling, ensuring consistent drying and cooling.

Adjustable Parameters – Flexible control over material layer thickness, conveying speed, and amplitude (stepless adjustment).

Gentle Processing – Minimal damage to fragile or irregularly shaped particles.

Closed Structure – Prevents cross-contamination and maintains a clean working environment.

High Efficiency – 30-60% energy savings compared to conventional dryers, with superior mechanical and thermal efficiency.

|

Applications

Chemicals: Citric acid, borax, ammonium sulfate

Pharmaceuticals: API intermediates, excipients

Food: MSG, dehydrated vegetables (e.g., radish shreds), soybean meal

Agriculture: Brewers' grains, seeds, mineral slag

Others: Compound fertilizers, granulated sugar

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

|

Parameters

Type	Fluidized bed area	Inlet air temperature	Air outlet temperature	Evaporation capacity	Vibration motor
Type	(m²)	(℃)	(℃)	(kg)	Model	Power Kw
ZLG3×0.30	0.9	70-140	40-70	20-35	ZDS31-6	0.8×2
ZLG4.5×0.30	1.35	70-140	40-70	35-50	ZDS31-6	0.8×2
ZLG4.5×0.45	2.025	70-140	40-70	50-70	ZDS32-6	1.1×2
ZLG4.5×0.60	2.7	70-140	40-70	70-90	ZDS32-6	1.1×2
ZLG6×0.45	2.7	70-140	40-70	80-100	ZDS41-6	1.5×2
ZLG6×0.60	3.6	70-140	40-70	100-130	ZDS41-6	1.5×2
ZLG6×0.75	4.5	70-140	40-70	120-140	ZDS42-6	2.2×2
ZLG6×0.9	5.4	70-140	40-70	140-170	ZDS42-6	2.2×2
ZLG7.5×0.60	4.5	70-140	40-70	130-150	ZDS42-6	2.2×2
ZLG7.5×0.75	5.625	70-140	40-70	150-180	ZDS51-6	3.0×2
ZLG7.5×0.9	6.75	70-140	40-70	160-210	ZDS51-6	3.0×2
ZLG7.5×1.2	9	70-140	40-70	200-260	ZDS51-6	3.0×2
