GFL
Availability: | |
---|---|
Quantity: | |
|
Product Features
The flow ability is improved and the dust is reduced, because of Granulator.
Because of powder Granulating, its solubility is improved,
The processes of Mixing, Granulating and drying are completed in one step inside the machine.
The operation is safe because the anti-static filter cloth adopted.
It's safe for operator if explosion take place, because explosion device is adopted.

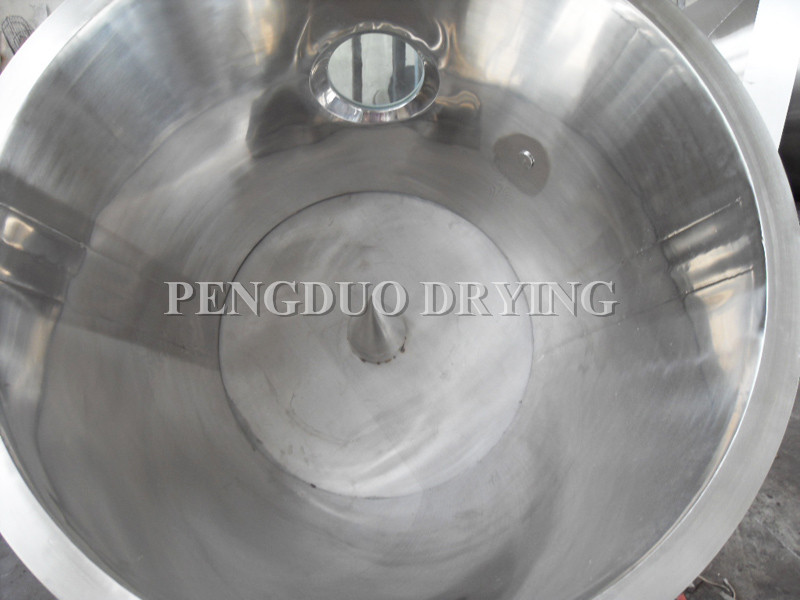

No dead corner. Therefore the loading and unloading are quick, light and clean, meet the requirements of GMP.
|
Applications
Pharmaceutical industry: tablet granules, granular granules, capsule granules.
Food industry: cocoa, coffee, milk powder, granular juice, condiments, etc.
Other industries: pesticides, feed, fertilizers, pigments, dye chemicals, etc.
Drying for powder or granules wet materials.
Coating: granule, pill protective layer, coloring, slow release, film, enteric coating, etc.
Pharmaceutical
Food Manufacturing
Feed
Coating
|
Parameters
Specifications | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 |
volume | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1000 | 1500 |
Processing capacity | 1.5/4.5 | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
Fan power | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 |
Steam consumption | 12 | 23 | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
Compressed air consumption | 0.3 | 1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
Noise | (Fan isolation installation) ≤75 | |||||||||||
Overall dimension | 1.0 × 0.55 × 1.8 | 1.2 × 0.6 × 2.1 | 1.25 × 0.9 × 2.1 | 1.6 × 0.9 × 2.3 | 1.65 × 1.1 × 2.4 | 1.85 × 1.25 × 3 | 1.85 × 1.25 × 3 | 2.2 × 1.65 × 3.1 | 2.27 × 1.72 × 3.1 | 2.34 × 1.9 × 3.5 | 2.8 × 1.9 × 3.8 | 3 × 2.55 × 4.2 |
