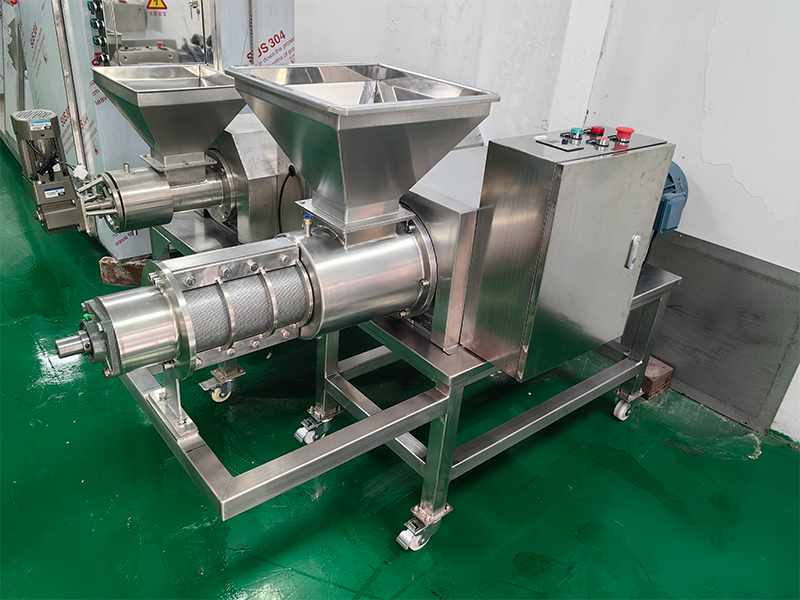

ZLB Extruder (Single screw extruder)

ZLB Extruder is primarily used in pharmaceutical, food, flavours, granule (instant drinks), chemical, and solid beverage industries to converts blended mixtures into uniform granules It is particularly suitable for high-adhesive materials.

Model:
ZLB

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Product Features

All material contact parts are made of stainless steel.

Ergonomic design with high-efficiency granulation machine

High forming rate with uniform granules

Automatic discharge prevents manual handling damage, making it ideal for continuous production lines.

Applications

Granules from extruder, swing granulation, or wet-mixing processes.

Wet granules/powders in pharmaceuticals, food, feed, and chemical industries.

Large granules, small lumps, and sticky agglomerates.

Materials with volume changes during drying (e.g., konjac).

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Grinding knife size (mm)	ZLB-250	ZLB-300B	ZLB-300D
Particle diameter (mm)	Φ2-2.2	Φ1.2-3	Φ0.5-6
Particle diameter (mm)	(According to user needs)	(According to user needs)	(According to user needs)
Overall dimension (mm)	700×540×1300	880×640×1300	1300×800×1200
Motor power (kw)	3	4	7.5-6
Weight (kg)	350	400	780

Note: Due to material differences, the output in the table is for reference only
