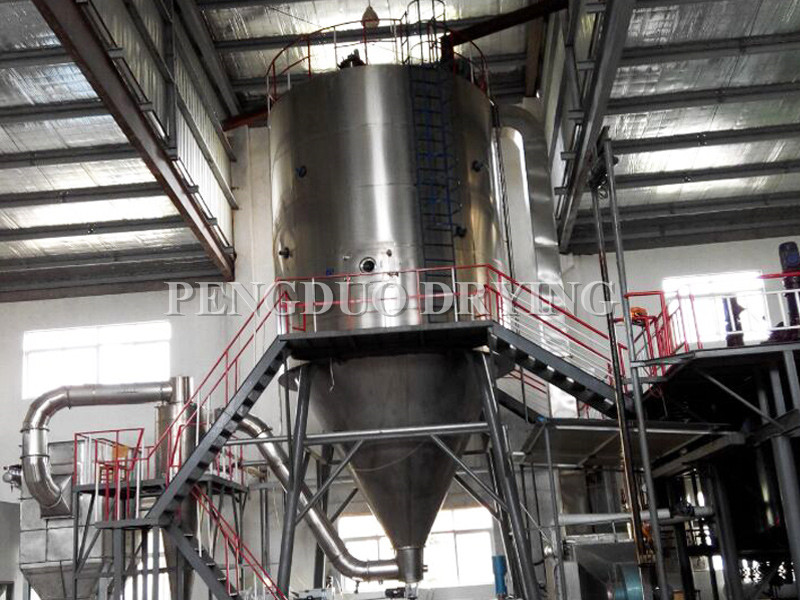

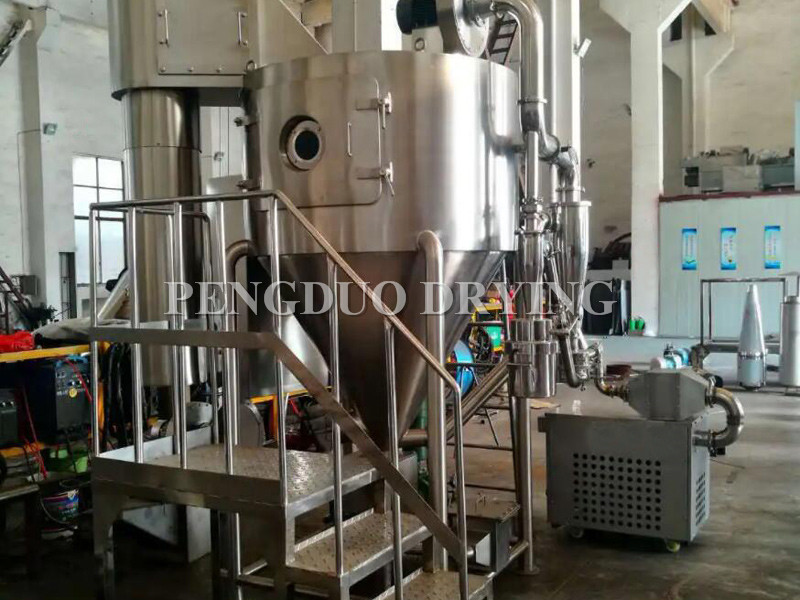

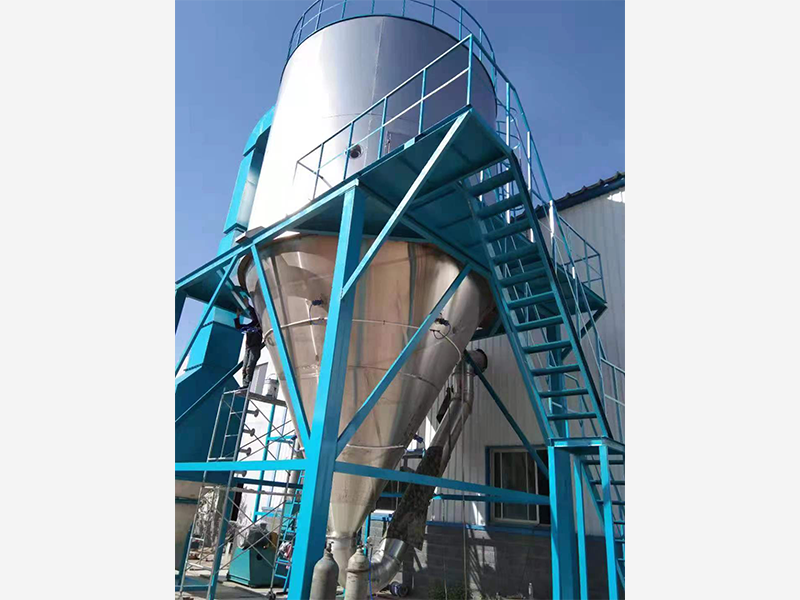

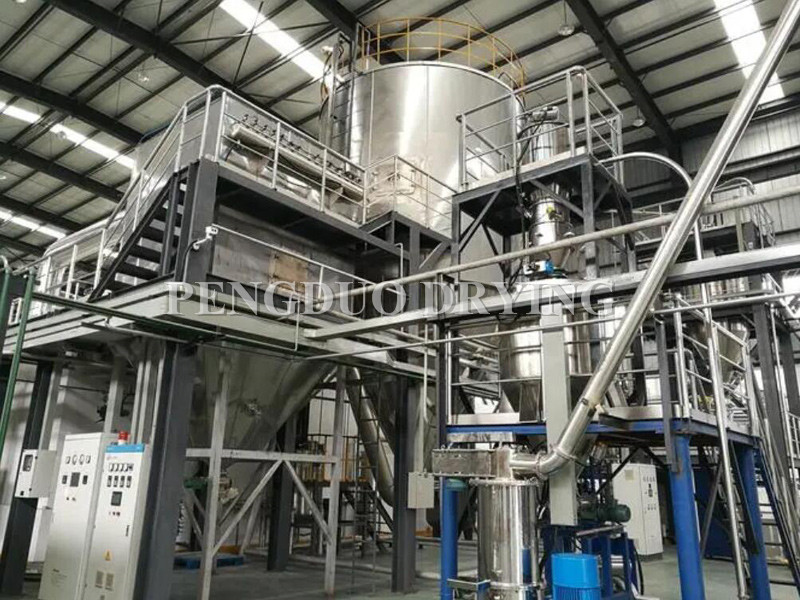

ZLPG Chinese Medicine Extract Spray Dryer

This equipment applies centrifugal spray drying technology specifically for herbal extract processing. It utilizes a high-speed centrifugal atomizer to disperse materials into fine droplets, ensuring full contact with hot air for instantaneous drying into powdered products.
This equipment adopts fully enclosed structure with all stainless-steel components. Triple air filtration system delivering 100,000-class clean air. Cooled wall jacket maintains wall temperature below 80°C. Integrated air broom system prevents wall accumulation. Zero product degradation – no charring, cross-contamination, or wall adhesion. High yield rate exceeding 95%

Model:
ZLPG

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

|

Product Features

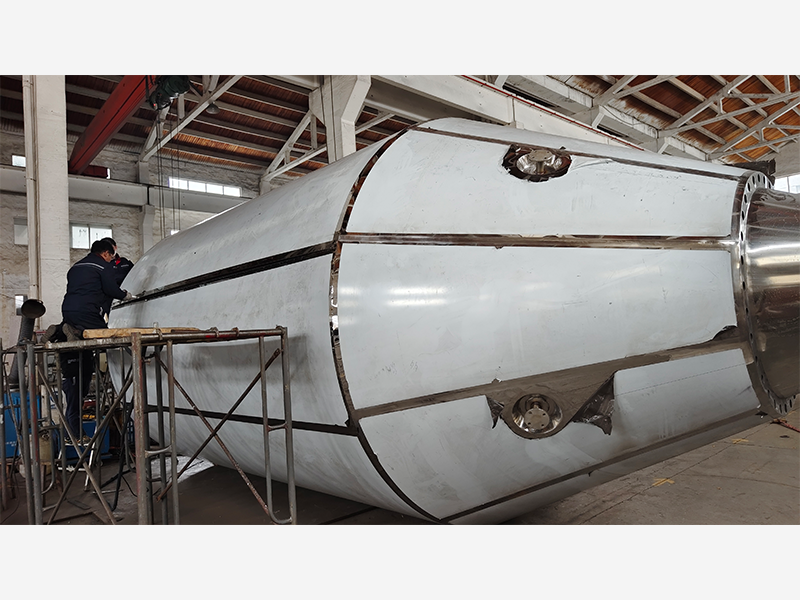

Tower chamber with cold-air jacketed.

Tower chamber with automatic vibration system.

Tower chamber and ducts with quick-open cleaning ports & drainage outlets.

Optional equip with Material Handling Temperature-controlled feed tank (automated).

Optional equip with Manual high-pressure tower cleaning kit.

Optional equip with air sweeping system.

|

Applications

Granules from extruder, swing granulation, or wet-mixing processes.

Wet granules/powders in pharmaceuticals, food, feed, and chemical industries.

Large granules, small lumps, and sticky agglomerates.

Materials with volume changes during drying (e.g., konjac).

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

|

Parameters

Specification	ZPG-5	ZPG-25	ZPG-50	ZPG-100	ZPG-150	ZPG-200
Air inlet temperature	140-220℃, adjustable
Air exhaust temperature	60-100℃, varies with product and process requirement
Nominal evaporated water (Kg/hour)	5	25	50	100	150	200
Solid content of feed material (%)	10-45%
Water content of product (%)	3-5%
Heating type	High pressure steam, or steam + electricity, or fuel (diesel, natural gas, LPG or coal etc) hot stove, oil furnace
Diameter of drying tower (mm)	1300	2400	3000	3500	4400	4800
Outline dimension (m)	2.7×1.6×2.8	6×5×6.5	8×6×8	10×6.5×10	11×7×12	12×8×13
Collecting method	Two grade cyclone / Wet scrubber
Collecting efficiency	95-98%, varies with product features and configuration

Specification	ZPG-300	ZPG-500	ZPG-800	ZPG-1000		ZPG-1200	ZPG-1500
Air inlet temperature	140-220℃, adjustable
Air exhaust temperature	60-100℃, varies with product and process requirement
Nominal evaporated water (Kg/hour)	300	500	800	1000		1200	1500
Solid content of feed material (%)	10-45%
Water content of product (%)	3-5%
Heating type	High pressure steam, or steam + electricity, or fuel (diesel, natural gas, LPG or coal etc) hot stove, oil furnace
Diameter of drying tower (mm)	5300	6000	6800		7500	8000	8500
Outline dimension (m)	14×9×14	16×10×15	16×12×17		18×13×18	19×14×19	20×15×20
Collecting method	Two grade cyclone / Wet scrubber
Collecting efficiency	95-98%, varies with product features and configuration
