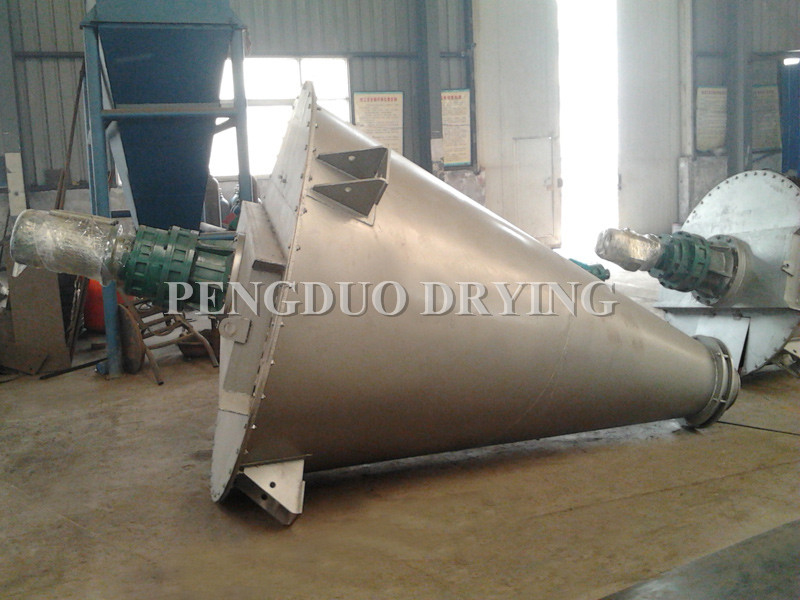

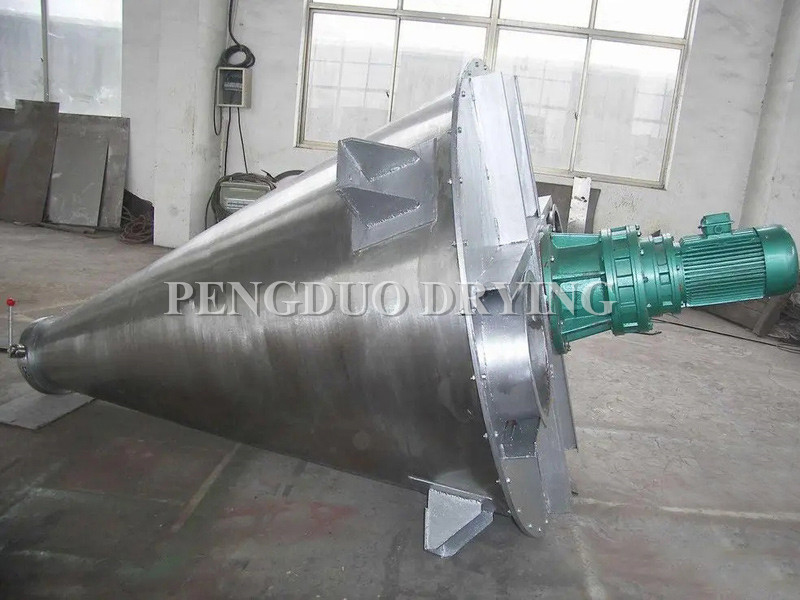

The combined rotation and revolution of the spirals generate complex material movement within the conical vessel, creating four primary motion patterns:
Spiral revolution along the wall forces materials into circumferential flow around the cone;
Spiral rotation elevates materials from the cone bottom upward along the spiral;
Compound motion (rotation + revolution) draws materials into the spiral cylinder, while centrifugal force from rotation radially discharges materials toward the cone wall;
Gravity descent of elevated materials.
These four motions create convection, shear, and diffusion effects, achieving rapid and homogeneous mixing.
