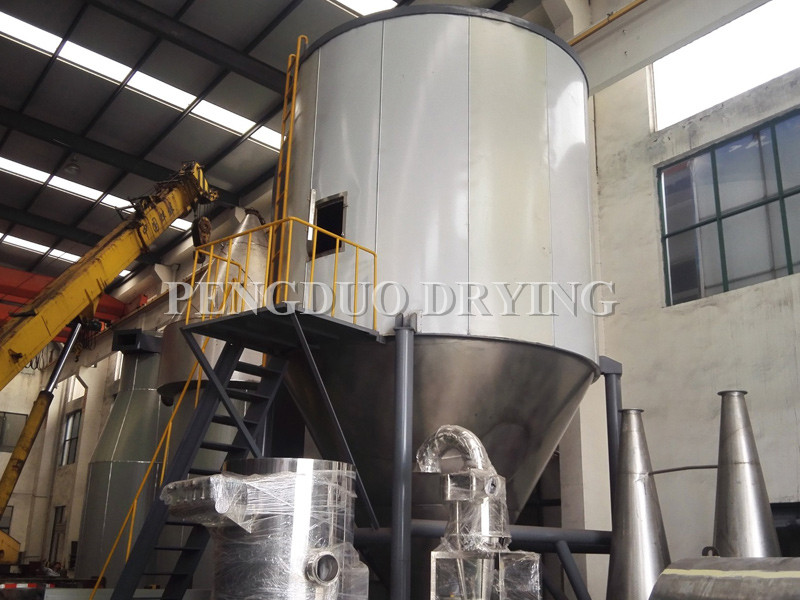

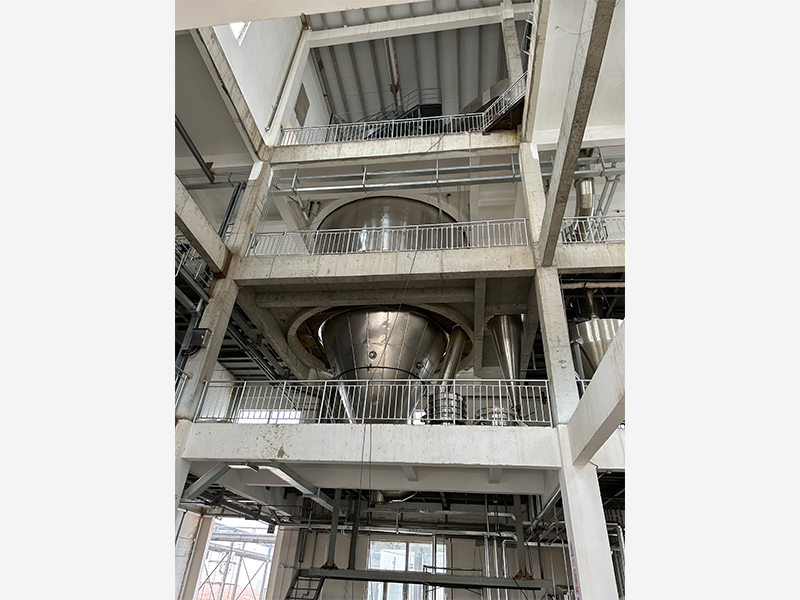

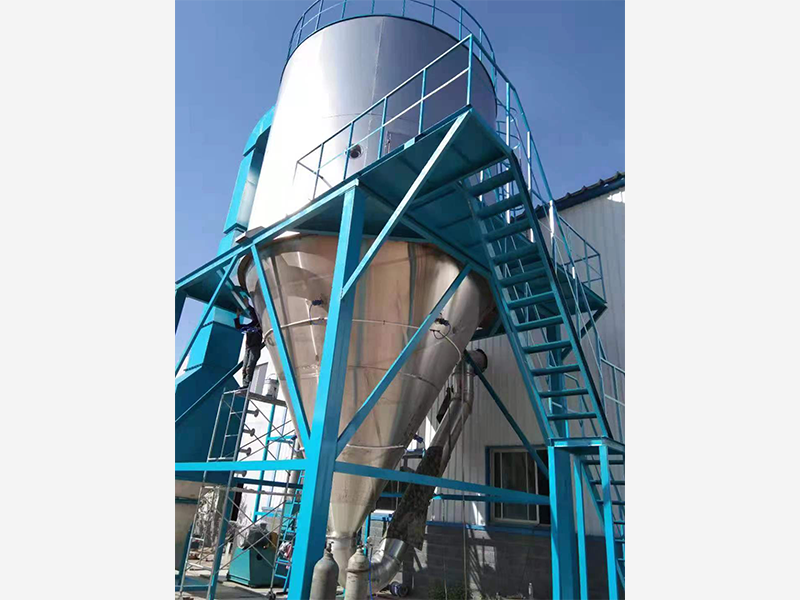

ZPL Spray Congealing Granulator

The solution, emulsion, suspension liquid or slurry are sprayed into fine beads in the hot air, Congealing Process Stages:
Pre-Cooling Stage
The molten material is cooled from the feeding temperature to its solidification point.
Solidification Stage
The liquid material completely solidifies. Temperature remains stable during this phase (near-isothermal conditions).
Cooling & Hardening Stage
The solidified product is further cooled to achieve final hardness.

Model:
ZPL

Quantity:
Availability:





Inquire

Applications

Parameters

Applications

Spray Cooling Granulator: Fatty acid amides, Waxes, Glycerides, Tallow (Also for spray crystallization, concentration, and reaction processes)

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Specification	ZPL-500	ZPL-1000	ZPL-2000	ZPL-3000	ZPL-5000	ZPL-10000
Air Inlet Temp.	-5℃-20℃, Adjustable
Air Exhaust Temp.	15℃-40℃, vary according to different products and processes
Capacity (Kg/hour)	500	1000	2000	3000	5000	10000
Main Particle Diameter Range (µm)	100-2000	100-2000	100-2000	100-2000	100-2000	100-2000
Cooling Type and Low-temp. Spec.	Chilling water -3℃-3℃
Cooling Tower Dia (mm)	5800	6800	7200	8500	9000	10000

Note: These parameters for reference only and will be changed as per URS.
