CH Guttered Mixer

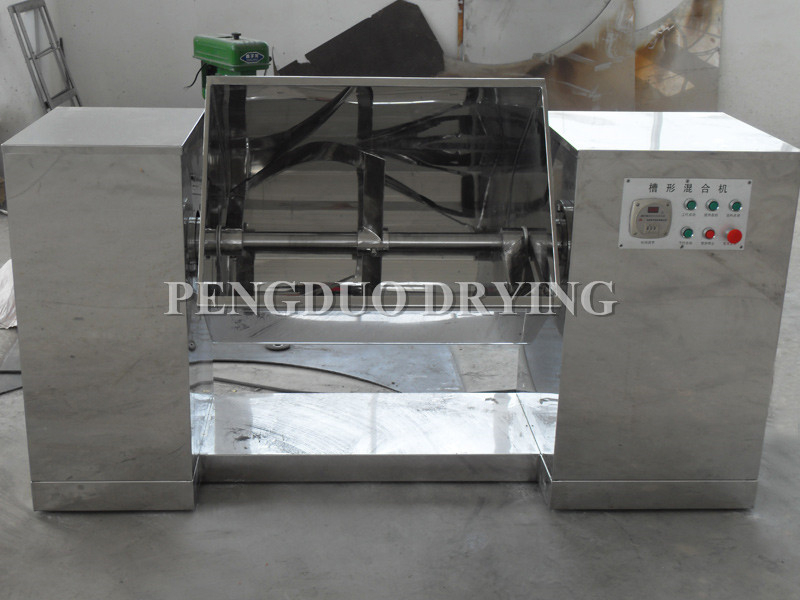

The CH Series Guttered /Trough Mixer is designed for blending powdered or wet materials, ensuring uniform mixing of primary and auxiliary ingredients in varying proportions. All parts in contact with materials are constructed from stainless steel. The small clearance between the blades and the trough eliminates dead zones during mixing. Seals at both ends of the mixing shaft prevent material leakage.

Model:
CH

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Product Features

All material-contact parts are made of stainless steel.

Minimal clearance between blades and trough ensures thorough mixing with no dead zones.

Sealed mixing shaft prevents material leakage.

Applications

Widely used in pharmaceuticals, chemicals, food, and other industries.

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Capacity (L)	CH-100	CH-150	CH-200	CH-400
Motor Power (kW)	2.2	3	3	5.5
Mixing Speed (rpm)	24	24	24	24
Discharge Angle (°)	105	105	105	105
Weight (kg)	350	500	650	1200
Dimensions (mm)	1400 × 500 × 1000	1600 × 600 × 1100	1800 × 700 × 1200	2000 × 820 × 1460
