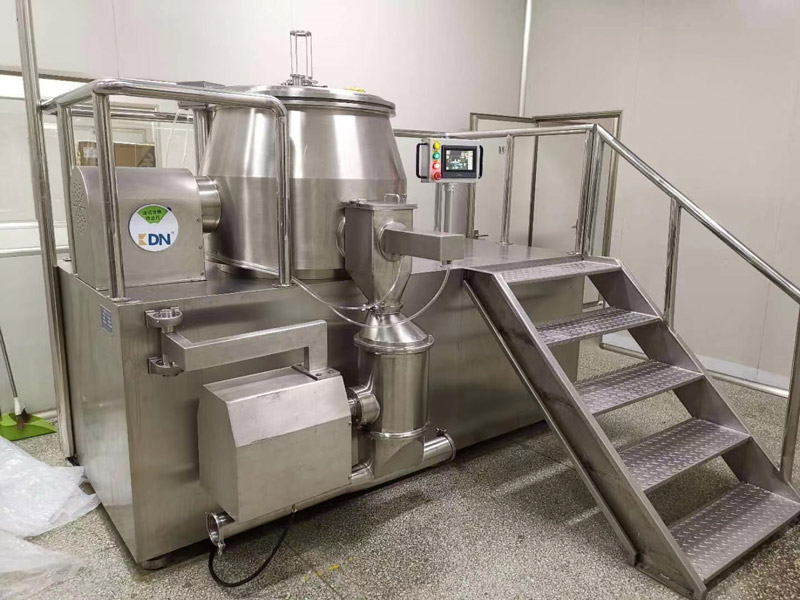

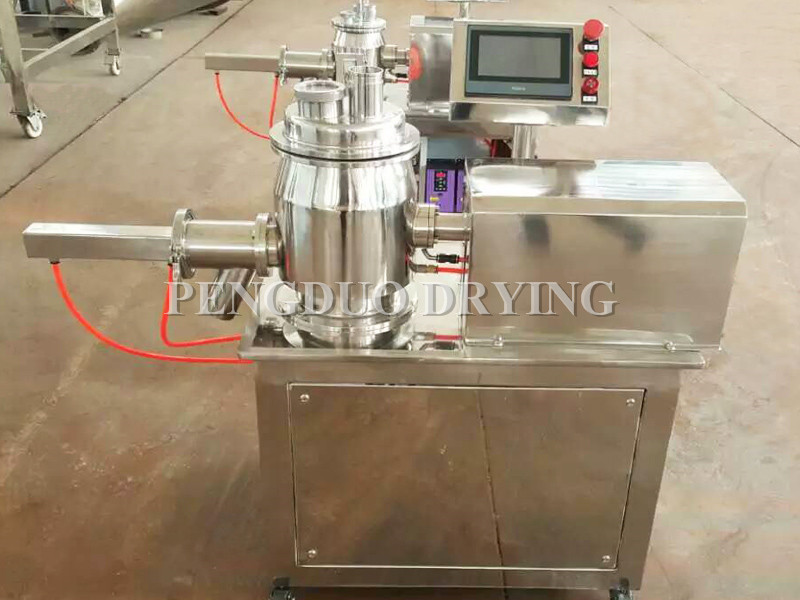

GHL High Shear Granulator

The powder raw material and adhesive in a cylinder are fully and fast mixed at the bottom to become a humid soft material. Then it is cut by high-speed cutter/wings and become uniform granules.

Model:
GHL

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Product Features

The machine adopts cylinder structure, rotor wings for high speed wet granulation with high granulate density and high particle stability.

Air filled seal shaft for to drive. When washing, it can be changed to water.

Fluidized Granulation, the granule is around ball shape. Its flow ability is good.

Compared to traditional process, 18-25% of adhesive can be re-duced and the drying time is short.

The mixing time is 2 minutes and the granulating time is 1-4 minutes. Compared to the traditional process, 4-5 times of efficiency is raised.

Dry mixing, wet mixing and granulating are finished in the same sealed container. It is in conformity with the requirements of GMP.

The whole operation has strict safe and protective measures.

Jacket type might be adopted on request

Applications

Granules from extruder, swing granulation, or wet-mixing processes.

Wet granules/powders in pharmaceuticals, food, feed, and chemical industries.

Large granules, small lumps, and sticky agglomerates.

Materials with volume changes during drying (e.g., konjac).

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Name	Model
Name	50	150	200	250	300	400	600
Volume L	50	150	200	250	300	400	600
Output kg/batch	15	50	80	100	130	200	280
Mixing speed r.p.m	200/400	180/270	180/270	180/270	140/220	106/155	80/120
Mixed power kw	4/5.5	6.5/8	9/11	9/11	13/16	18.5/22	22/30
Cutting speed r.p.m	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000
Cutting power kw	1.3/1.8	2.4/3	4.5/5.5	4.5/5.5	4.5/5.5	6.5/8	9/11
Compressed air consumption m³/min	0.6	0.9	0.9	0.9	1.1	1.5	1.8
Weight kg	500	800	1000	1300	1800	2200	2600
