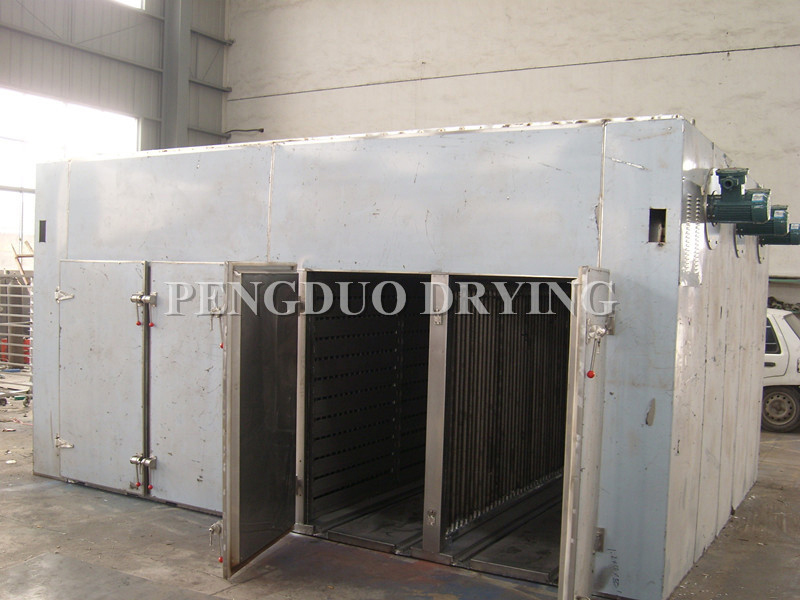

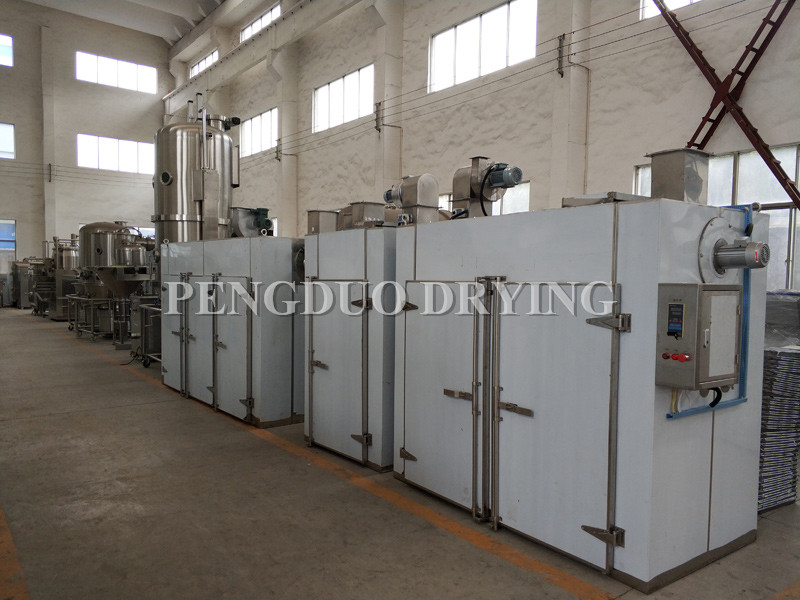

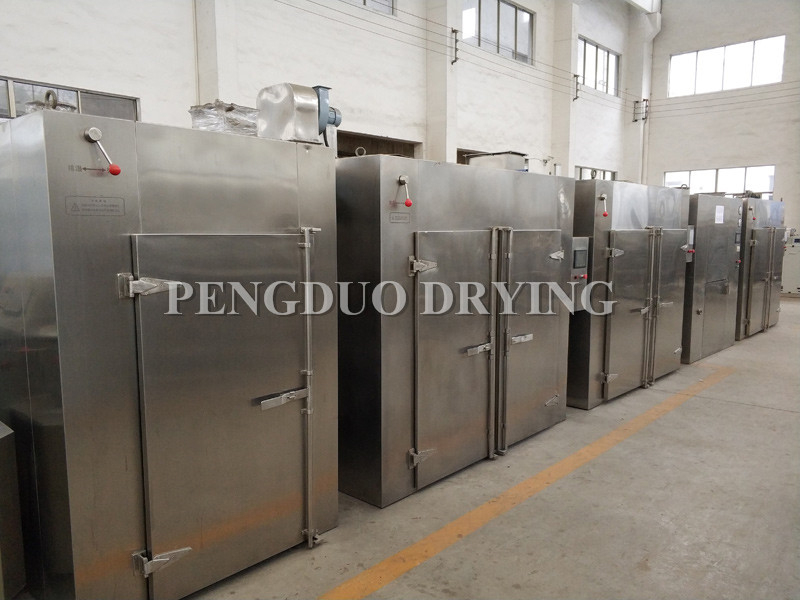

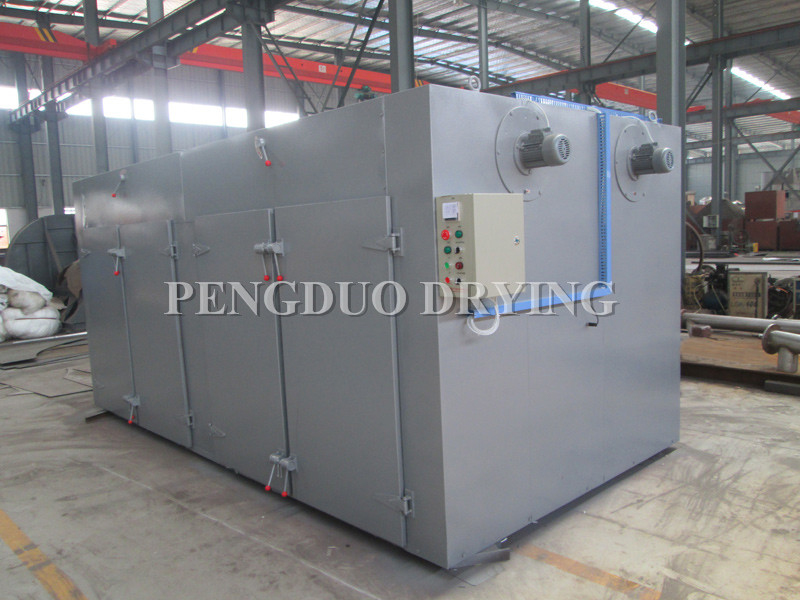

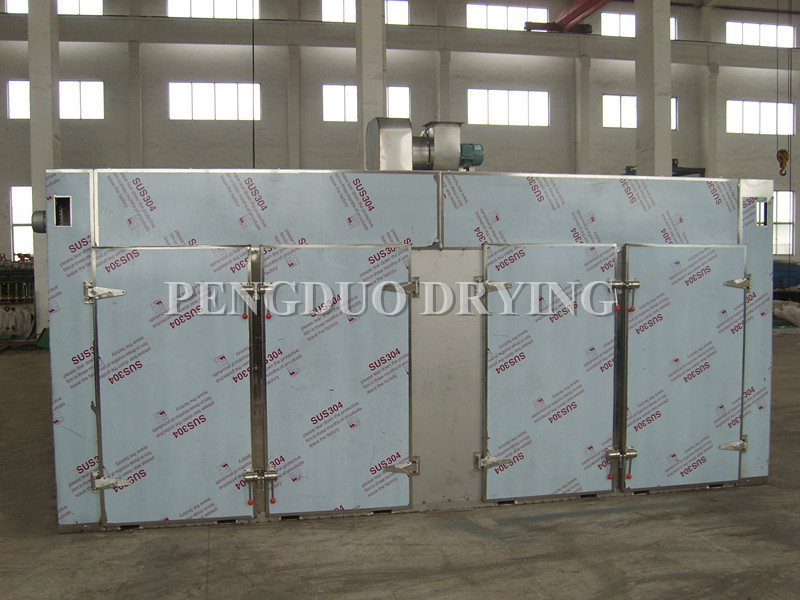

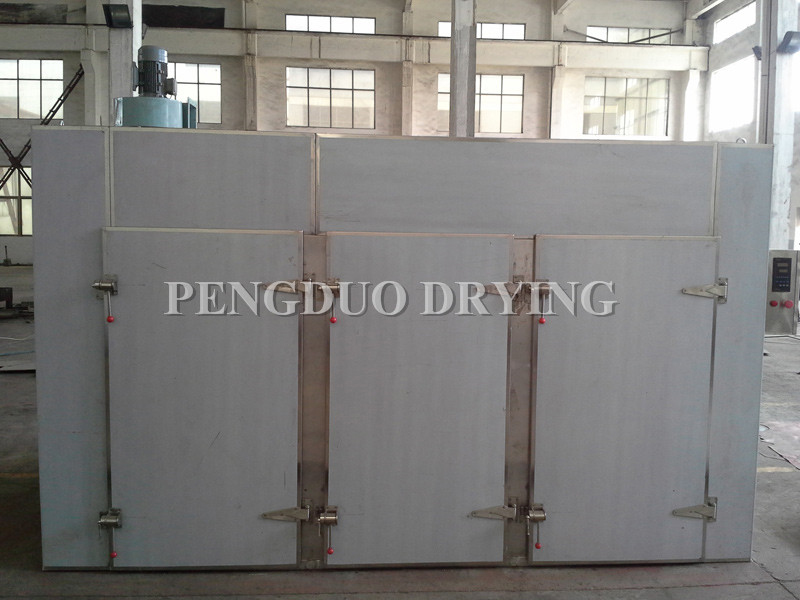

CT-C Hot Air Circulation Drying Oven

Equipped with high-temperature resistant axial flow fans (low noise) and automatic temperature control system, the fully enclosed circulation system improves thermal efficiency from conventional 3-7% to 35-45%, with maximum efficiency reaching 50%. The successful design of CT-C series has brought China's hot air circulation ovens to international standards, significantly saving energy and enhancing industrial economic benefits. In 1990, it was standardized as RXH by the National Medical Products Administration.

Model:
CT-C

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

|

Product Features

◆ Efficient circulation: 80% hot air recirculation with high thermal efficiency

◆ Uniform drying: Adjustable air distribution plate with forced ventilation

◆ Flexible heat sources: Steam (50-140°C max 150°C), electricity/IR (50-350°C)

◆ Control options: Automatic or computerized control systems

◆ Low noise & stable operation with easy maintenance

◎ Heat sources: Steam/electric/IR or dual-purpose (customizable)

◎ Steam pressure: 0.02-0.8MPa (0.2-8kg/cm²)

◎ Electric power: Standard 15KW (actual consumption 5-8KW/h)

◎ Standard tray size: 460×640×45mm (interchangeable racks/trays)

◎ Customization: Non-standard designs/temperatures (>140°C or <60°C) require order notes

|

Applications

Widely applied in pharmaceuticals, chemicals, food, agricultural products, aquatic products, light/heavy industries for heat curing and dehydration drying, including:

● Pharmaceuticals: raw materials, herbs, TCM slices, extracts, powders, granules

● Food: dehydrated vegetables, dried fruits, sausages

● Industrial: pigments, plastics, resins, electronic components, paint curing

● Others: packaging bottles, pellets, etc.

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

|

Parameters

Industry Standard Model	Model	Drying Capacity (kg/batch)	Power (kw)	Steam Consumption (kg/h)	Heat Area (m²)	Airflow (m³/h)	Temperature Differential (Top-Bottom) (oC)	Trays	Dimensions	Trolley	Weight
RXH-14-B	CT-Ⅰ	120	1.1	20	20	2800	±2	48	2430×1200×2375	2	1200
RXH-27-B	CT-Ⅱ	240	2.2	40	40	5200	±2	96	2430×2200×2433	4	1500
RXH-41-B	CT-Ⅲ	360	3	60	80	8000	±2	144	3430×2200×2620	6	2000
RXH-54-B	CT-Ⅳ	480	4	80	100	9800	±2	192	4460×2200×2620	8	2300
RXH-5-C	CT-C-O	25	0.45	5	5	3450	±2	16	1130×1100×1750	0	800
RXH-7-C	CT-C-ⅠA	50	0.45	10	10	3450	±2	24	1400×1200×2000	1	1000
RXH-14-C	CT-C-Ⅰ	120	0.45	18	20	3450	±2	48	2300×1200×2000	2	1500
RXH-27-C	CT-C-Ⅱ	240	0.9	36	40	6900	±2	96	2300×2200×2000	4	1800
RXH-27A-C	CT-C-ⅡA	240	0.9	36	40	6900	±2	96	4460×1200×2290	4	1800
RXH-41-C	CT-C-Ⅲ	360	1.35	54	80	10350	±2	144	3430×2200×2000	6	2200
RXH-42A-C	CT-C-ⅢA	360	1.35	54	80	10350	±2	144	2300×3200×2000	6	2200
RXH-54-C	CT-C-Ⅳ	480	1.8	72	100	13800	±2	192	4460×2200×2290	8	2800
RXH-25-A	High-Efficiency High-Temperature Infrared Sterilization Oven Power Configuration: Adjusted according to temperature requirements								1200×1000×1600	1	1200
