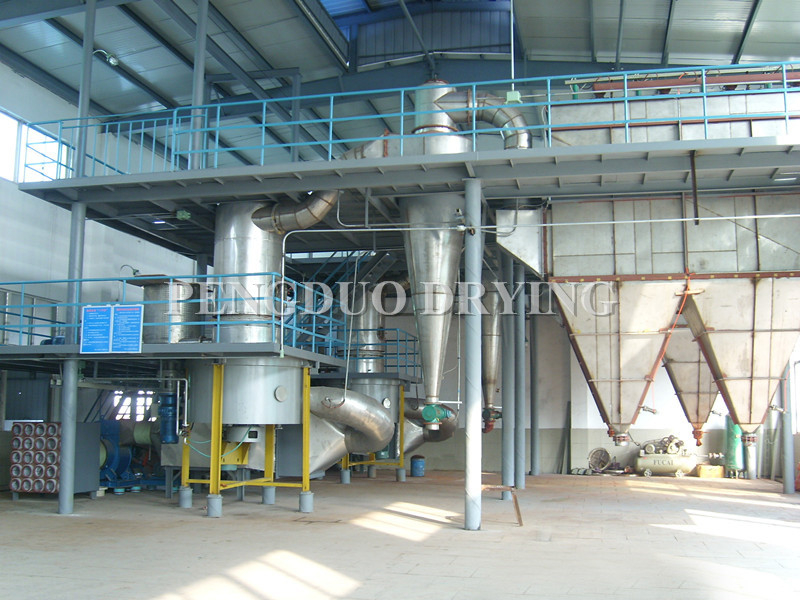

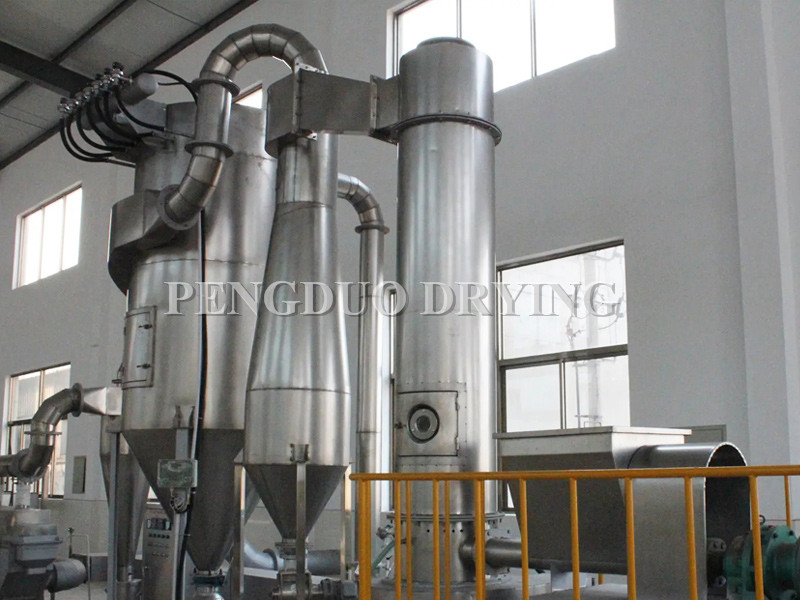

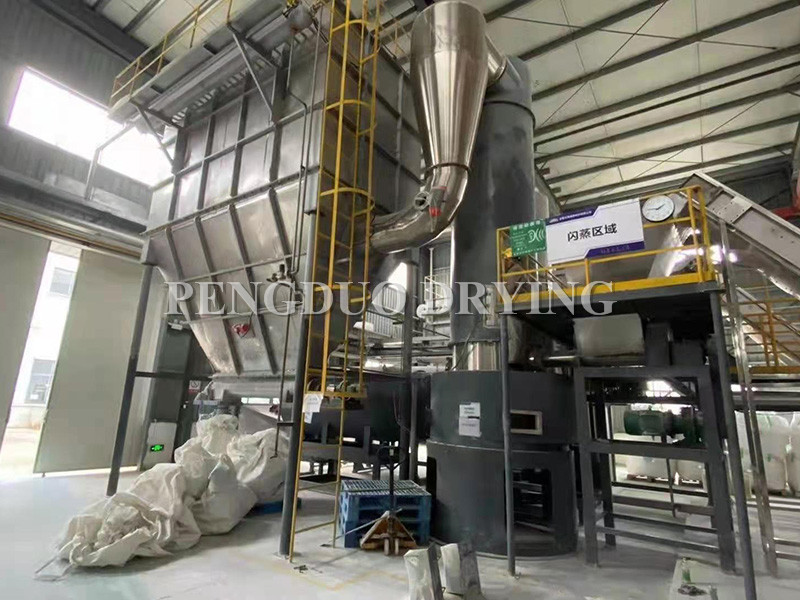

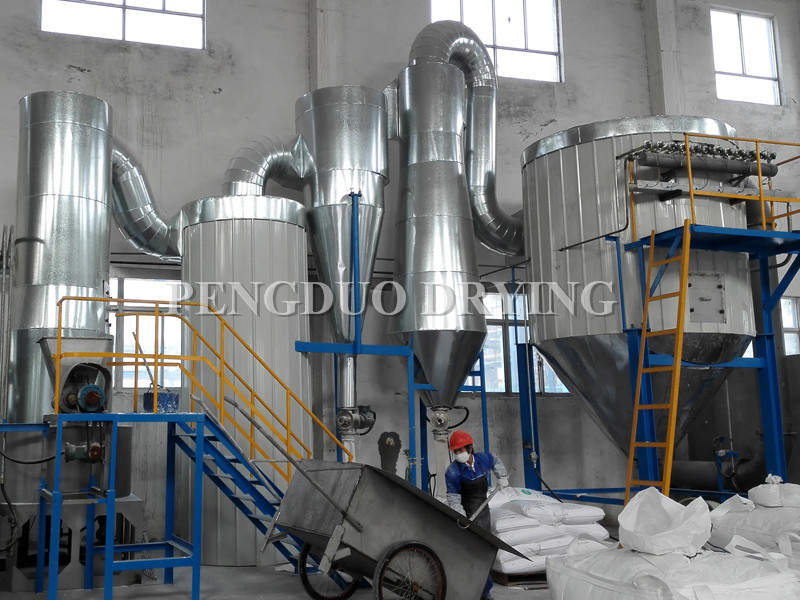

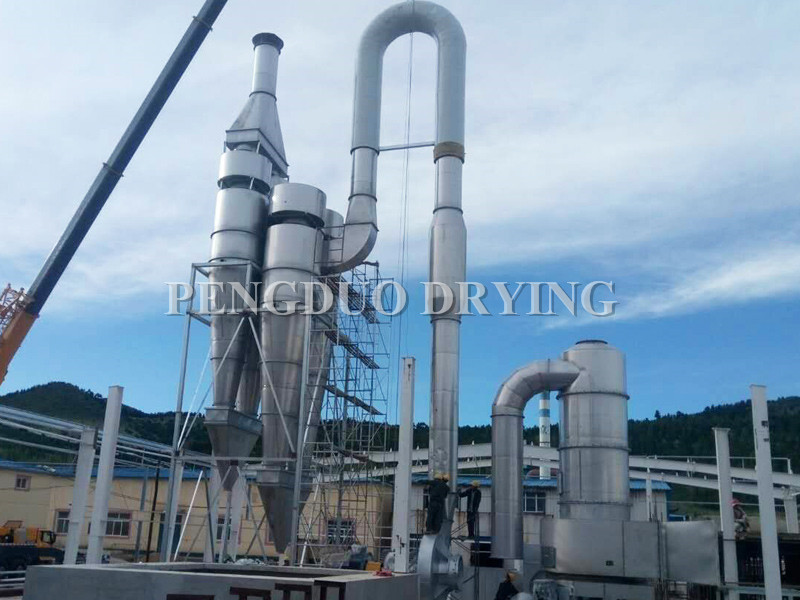

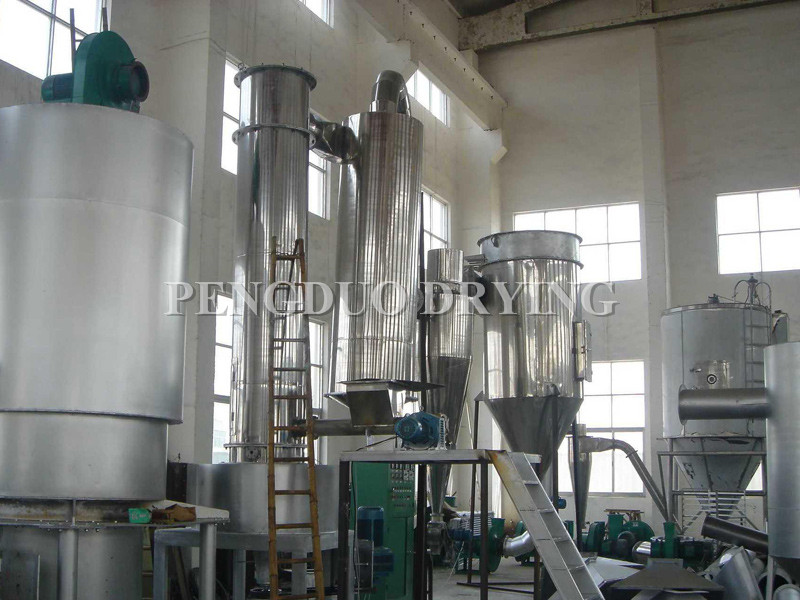

XSG Flash Dryer

Hot air enters tangentially at the bottom of the dryer, forming a powerful rotating airflow field driven by the agitator. Paste material is fed via a screw conveyor, where high-speed rotating blades disperse it through impact, friction, and shear forces. Blocks material are instantly broken down for full heat exposure and rapid drying. Dehydrated particles ascend with the hot air stream, a classification ring retains oversized particles, qualified fine particles exit through the ring center, is collected via cyclone separator & dust collector, undried materials are centrifuged to the walls for re-crushing

Model:
XSG

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Product Features

Integrated technologies of cyclonic flow, fluidization, crushing & classification

Compact but productive, continuous processing achieves large-scale output with small footprint

High efficiency, lower energy consumption.

Short residence time (5-60 sec) preserves heat-sensitive materials

Operation under negative pressure, good closed-loop, high effciency, prevents environmental contamination

Applications

Organic Compounds: Atrazine (pesticide), Lead laurate, Benzoic acid, Captan fungicide, Sodium oxalate, Cellulose acetate

Dyes & Pigments: Anthraquinone, Iron oxide black, Indigo, Titanium hydroxide, Zinc sulfide, Azo dye intermediates

Inorganics: Borax, Calcium carbonate, Copper sulfate, Barium carbonate, Antimony trioxide, Synthetic cryolite

Food Ingredients: Soy protein, Gelatinized starch, Brewer's grains, Wheat sugars , Corn starch

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Model	XSG-2	XSG-4	XSG-6	XSG-8	XSG-10	XSG-12	XSG-16	XSG-20
Inner diameter of main engine mm	200	400	600	800	1000	1200	1600	2000
Blowing rate M3/h	350-500	1150-2000	2450-4500	4450-7550	7000-12500	10000-20000	18000-36000	28200-56500
Evaporated moisture kg/h	12-17	40-70	80-150	150-250	230-4250	300-600	600-1000	1000-1500
Maximum installed capacity kw	10	20	40	65	85	105	150	230
Maximum height m	4	4.8	5.8	6.5	7.1	7.8	8.8	10.1
Area covered m2	15	20	28	35	40	52	80	150
