TJG
| Availability: | |
|---|---|
| Quantity: | |

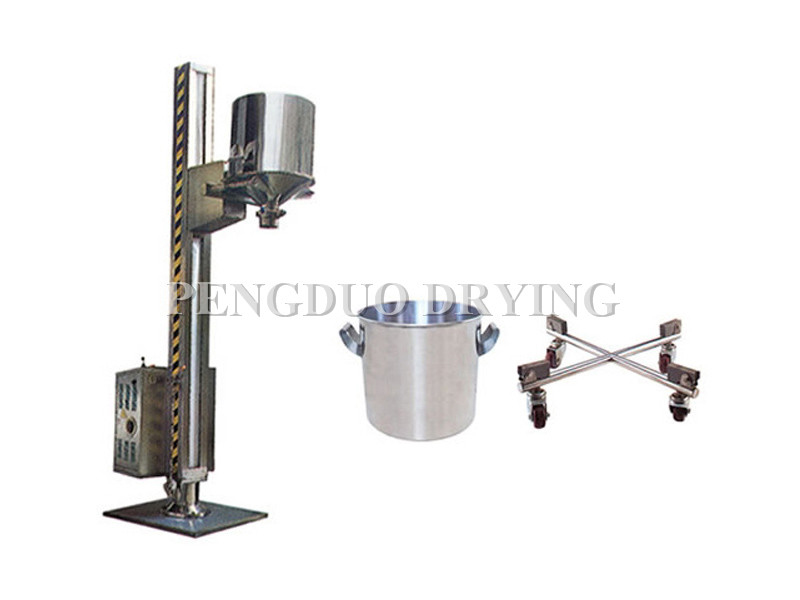

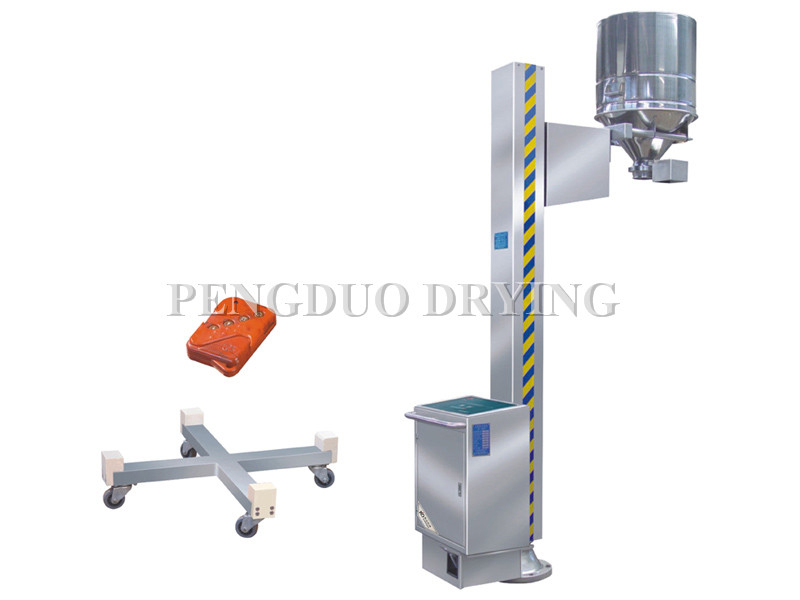

The lifting unit comprises Frame structure, Hydraulic lifting system and Material gate tilting device.
1. First, securely fasten the feeder's material gate to the material container
2. Activate the lifting control lever to raise both the gate and container simultaneously
3. Engage the tilting control lever to rotate the container by 180 degrees, positioning it upside down
4. Move the inverted container to the desired location
5. Material can then be conveniently discharged into the target process equipment through the discharge butterfly valve on the material gate
|
Product Features
● No Residual Material – Full inversion minimizes product retention
● Positioning Flexibility – Adjustable discharge location
● Maintenance-Friendly – Modular structure simplifies servicing
|
Applications
This design enables efficient, controlled material transfer for industrial processing applications.
Pharmaceutical
Food Manufacturing
Feed
Chemical Industry
|
Parameters

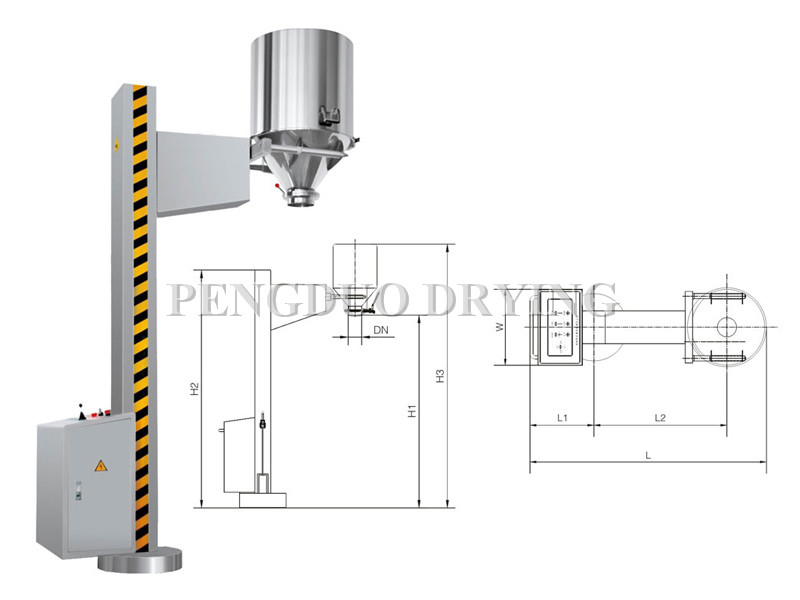

| Model/Specification | H | A | D | H1 |
| TJG-50 | 2050 | 650 | Φ485 | 2900 |
| TJG-100 | 2050 | 750 | Φ590 | 2900 |
| Item | Loading capacity (kg) | Size (Diameter*Height) | Thickness (mm) |
| Material container | 50 | Φ485×460 | 0.8 |
| 100 | Φ590×550 | 0.8 | |
| Trolley for container | 50-100 | Φ500×600 |
