HZG Rotary Dryer

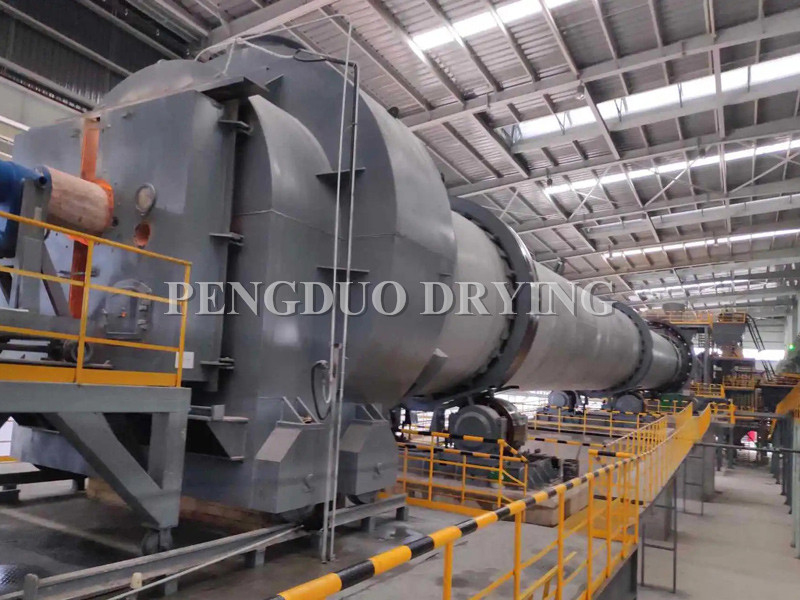

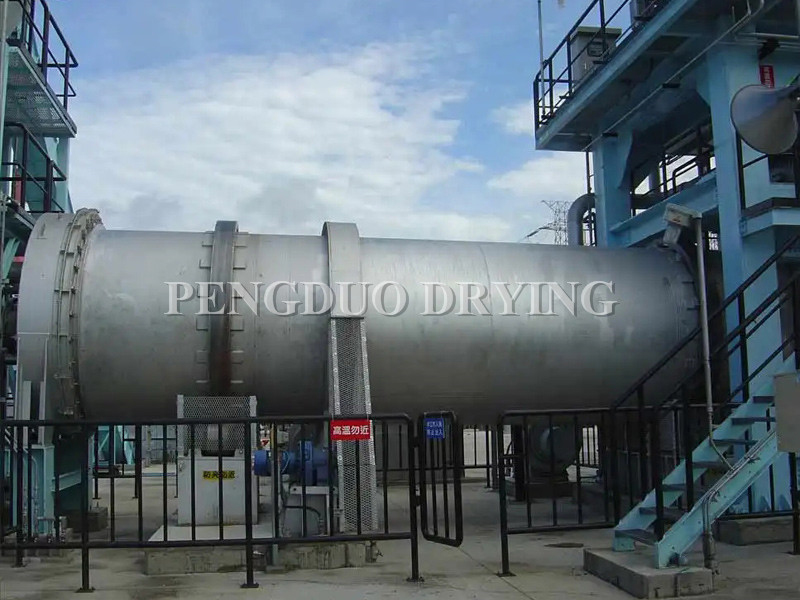

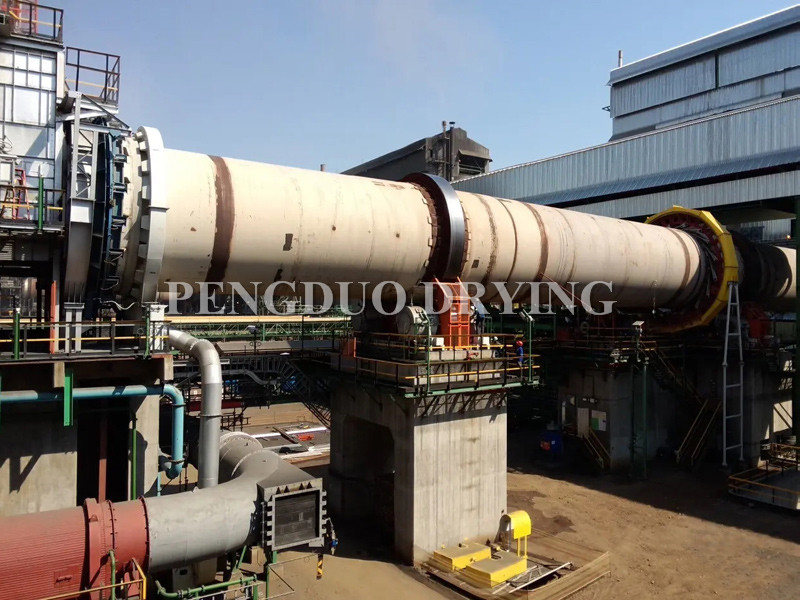

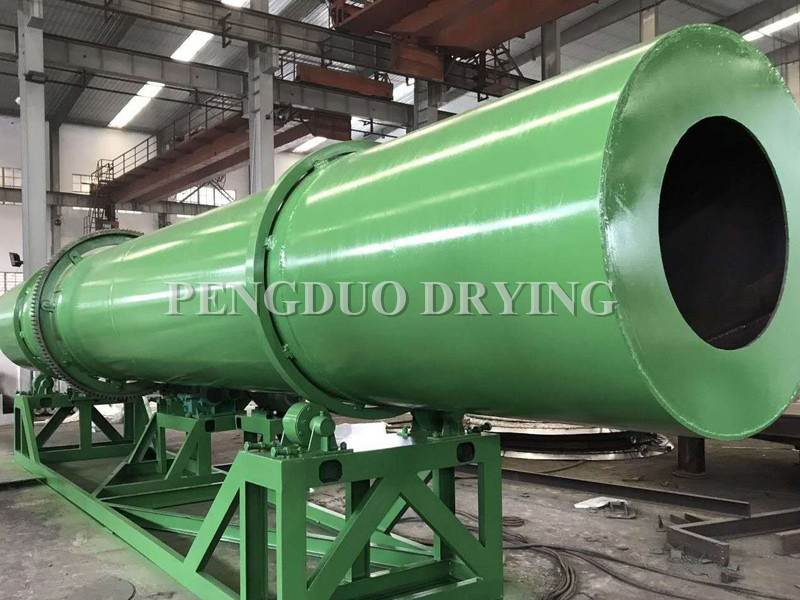

The HZG rotary drum dryer features a slightly inclined cylindrical main body with adjustable rotation speed within a certain range. Wet material is fed into one end of the dryer, where uniformly distributed lifting flights inside the cylinder continuously lift and disperse the material. This ensures even distribution and full contact with co-current (or counter-current) hot air, significantly enhancing heat transfer efficiency and drying dynamics. During the process, the combined action of the inclined lifting flights and hot air flow enables controlled material movement toward the discharge end, where the dried product is discharged through a star valve.

Model:
HZG

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

|

Product Features

High mechanization level with large production capacity.

Low resistance to airflow through the cylinder, resulting in reduced energy consumption.

Strong adaptability to various material properties.

Stable operation, low operating costs, and excellent drying uniformity.

|

Applications

Chemical, mining, and metallurgy industries: Drying of large, high-density particles such as ores, blast furnace slag, coal, metal powders, phosphate fertilizers, and ammonium sulfate.

Specialty powders and granular materials: Including HP foaming agents, distiller's grains, light calcium carbonate, activated clay, magnetic powder, graphite, and herbal residues.

Materials requiring low-temperature, large-scale continuous drying.

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

|

Parameters

Model	Direct Heating Co-current Flow	Direct Heating Co-current Flow	Direct Heating, Counter-current Flow	Direct Heating, Counter-current Flow	Combined Heating	Combined Heating
Material type	Ores	HP foaming agent	Blast furnace slag	Ammonium sulfate	Phosphate fertilizer	Coal
Capacity (kg/h)	1000	466	15000	20000	12000	5000
Initial moisture (%)	30	13	6	1.5	5	6.5
Final moisture (%)	15	0.3	1	0.1	0.1	0.1
Average particle (mm)	6.5	0.05	4.7	0.5-1.7	0.5	5
Bulk density (kg/m³)	770	800	1890	1100	1500	750
Hot air flow rate (kg/h)	3900	5400	10750	9800	6500	16000
Inlet temp. (oC)	600	165	500	180	650	570
Outlet temp. (oC)		42	100	70	80	75
Heating method	Gas	Steam	Thermail oil	Hot air furnace	Thermail oil	Thermail oil
Loading coefficient		6.3	7	7.5	7.8	18
Rotation speed (rpm)	4	4	3.5	3	4	2
Inclination angle	0.04	0.005	0.03	0.05	0.05	0.043
Number of lifters	12	24	12	22	External 8 Inner 16	6 12
Dryer diameter (m)	2.0	1.5	2	2.3	External 2 Inner 0.84	External 2.4 Inner 0.95
Dryer length (m)	20	12	17	15	10	16
Power (kw)	22	7.5	15	11	11	15
