WFS Chinese Herbal Medicine Grinder

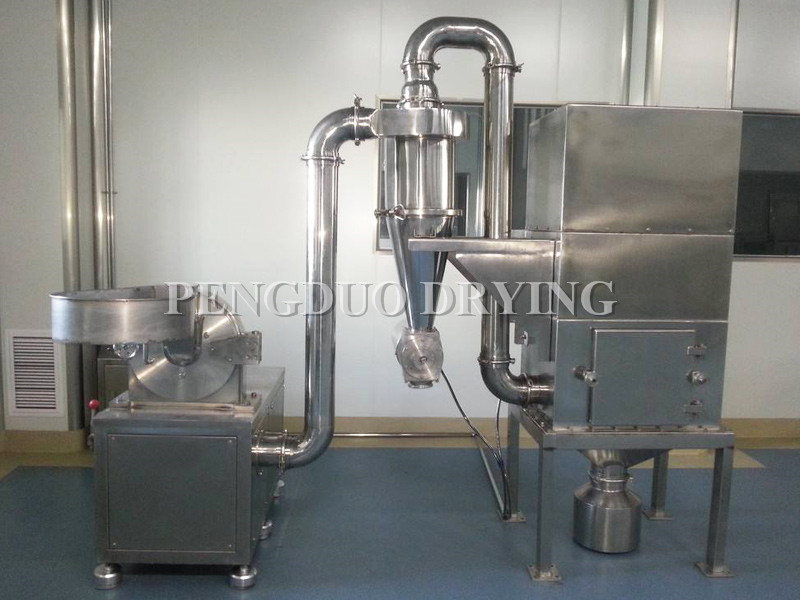

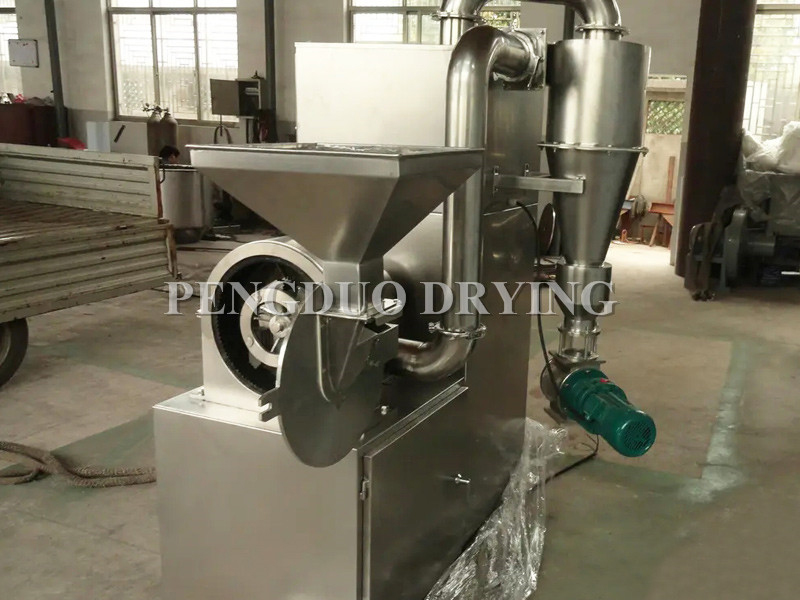

The WFS Chinese Herbal Medicine Grinder consists of the following systems: feeding system, grinding system, classification system, material collection & dust removal system, and air induction system.

Model:
WFS

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

This machine represents a completely redesigned grinding system, combining the advantages of micro-grinders, high-efficiency mills, and universal pulverizers. Specifically engineered for herbal medicine processing,

● Main Drive Unit (Host Machine):

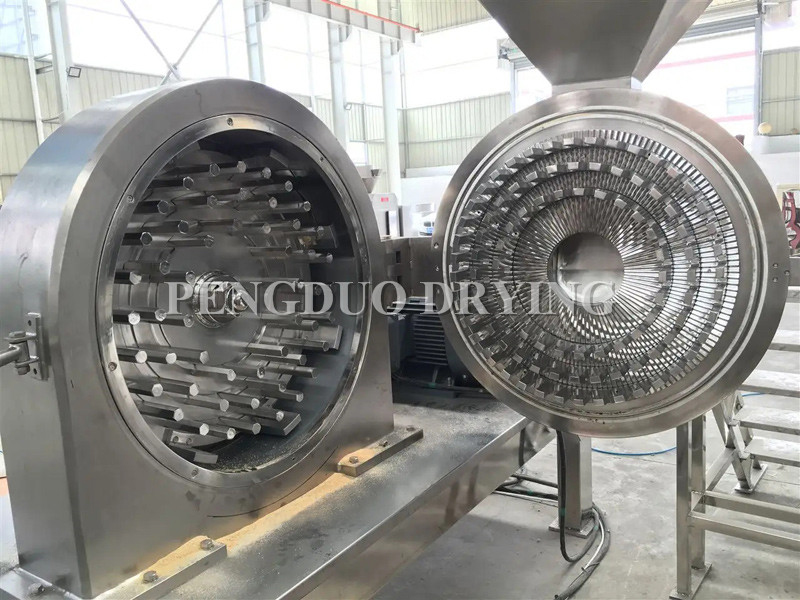

Includes the grinding chamber, feed hopper, rotating blades, toothed ring (stator), and grading screen.

● Material Collection System:

Composed of pipes, cyclone separator, and discharge valve (rotary airlock/star valve).

● Dust Removal System:

Equipped with a bag filter (dust collector) and exhaust fan.

Product Features

● Dual-stage filtration ensures <0.1% material loss

● Adaptive blade geometry handles fibrous/herbal materials (e.g., roots, barks)

● Low-temperature grinding preserves bioactive compounds

Applications

Traditional Medicine Processing: Roots (e.g., ginseng, licorice), Barks (e.g., cinnamon, eucommia), Hard seeds (e.g., coix seed, ginkgo), Food & Health Products: Herbal tea blends, Functional powder supplements, Spice grinding (e.g., dried ginger, goji berries)

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Model	Grinding motor (kw)	Grinding Fineness (mesh)	Production Capacity (kg/h)	Main Shaft Speed (r/min)	Feed Particle Size (mm)
WF-30B-20	5.5	60-280	10-50	4000	＜12
WFS-30B-30	7.5	60-280	30-120	4500	＜12
WFS-30B-40	11	20-200	50-180	4000	＜15
