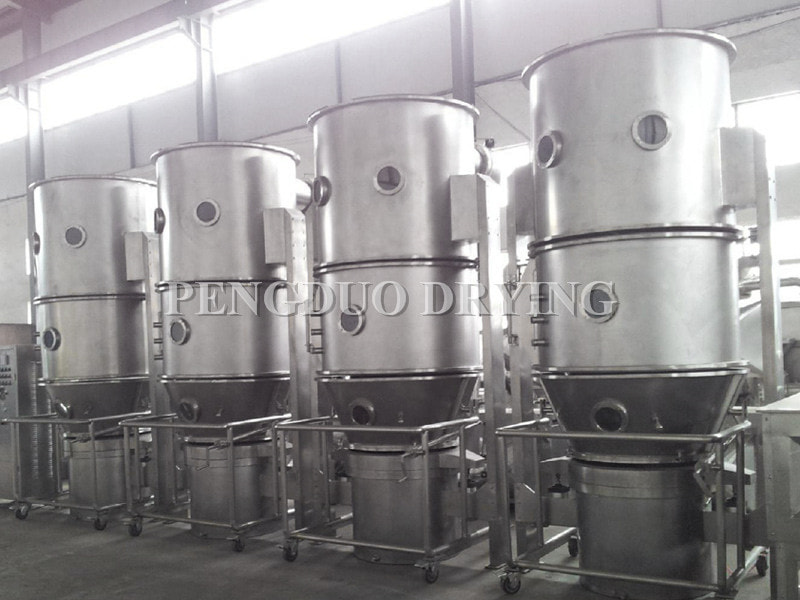

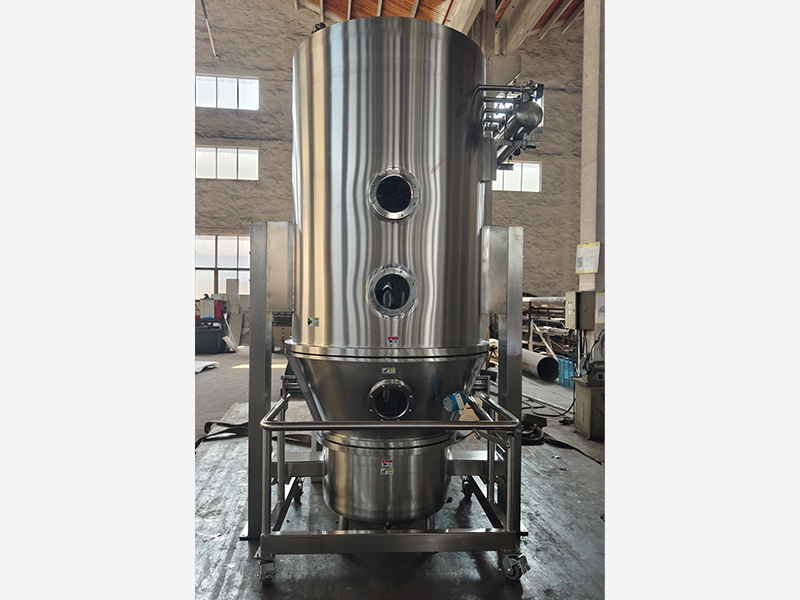

GFG High Efficiency Fluidized Bed Dryer

The purified and heated air is drawn in by a suction fan from the bottom, passing through the perforated mesh plate of the material hopper. Inside the working chamber, the combined effects of stirring and negative pressure create a fluidized state. Moisture rapidly evaporates and is carried away by the exhaust air, resulting in efficient drying of the material.

Model:
GFG

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Product Features

Circular Fluidized Bed Design – Round structure eliminates dead corners for uniform drying.

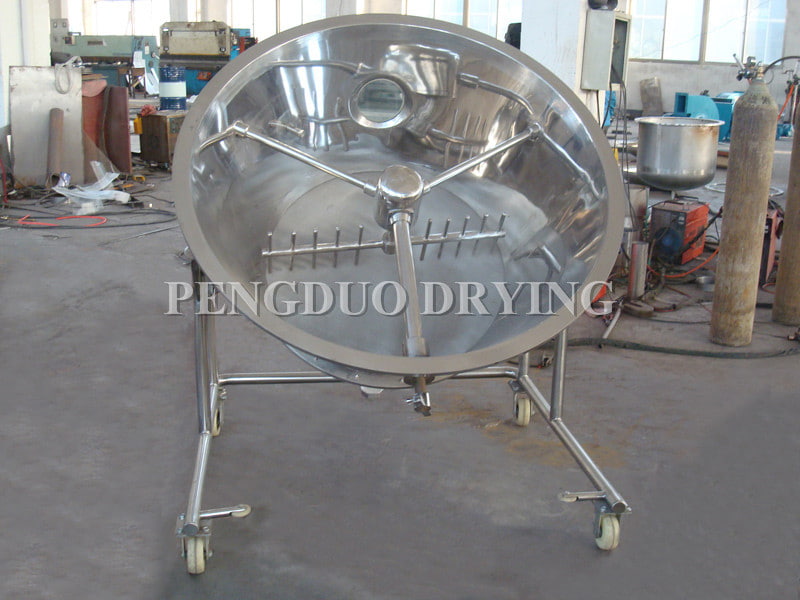

Integrated Stirring System – Agitator in the hopper prevents clumping of moist materials and channeling during drying.

Tilting Discharge Mechanism –Enables fast and thorough unloading; automatic loading/unloading systems can be customized upon request.

Sealed Negative-Pressure Operation – Filtered airflow ensures safety and hygiene. Simple to operate and easy to clean.

Fast & Uniform Drying – Batch drying time: 20–30 minutes (material-dependent), with even heat distribution.

Applications

Granules from extruder, swing granulation, or wet-mixing processes.

Wet granules/powders in pharmaceuticals, food, feed, and chemical industries.

Large granules, small lumps, and sticky agglomerates.

Materials with volume changes during drying (e.g., konjac).

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Item	Type
Feeding(kg)	GFG-60	GFG-120	GFG-150	GFG-200	GFG-300	GFG-500	GFG-1000
Fan power(kw)	7.5	15	18.5	22	30	45	75
Mixing power(kw)	0.55	1.1	1.1	1.1	1.5	2.2	2.2
Mixing speed(rpm)	8～11
Steam consumption(kg/h)	141	170	240	282	366	451	800
Operation time(min)	15-30（Depend on material characteristics）
Host height	2700	2900	2900	2900	3300	3500	5800
