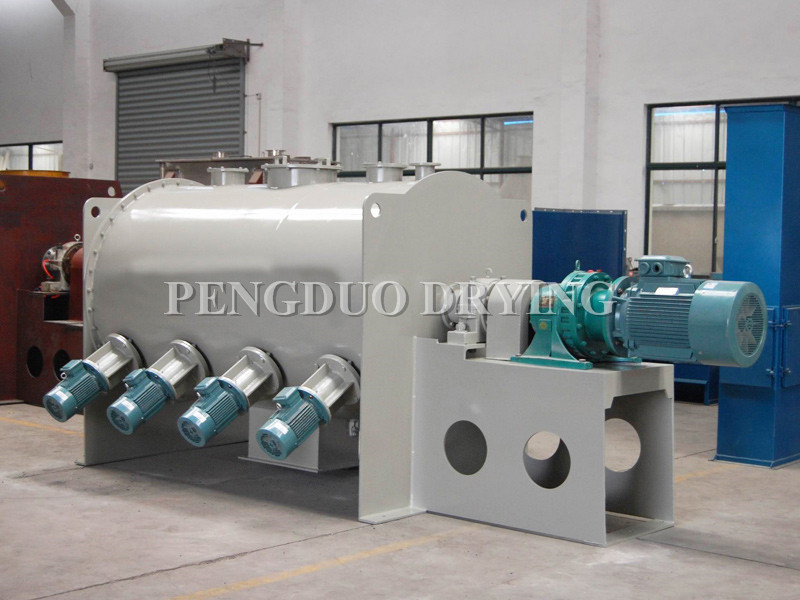

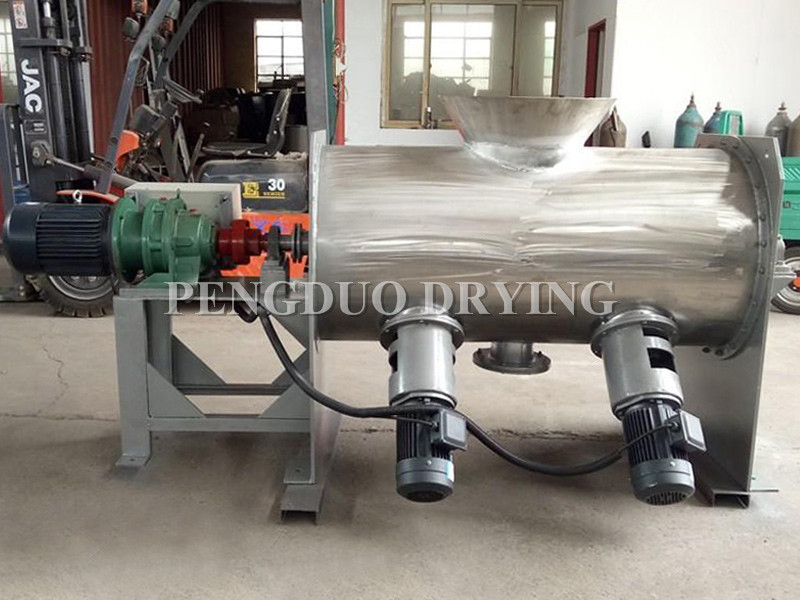

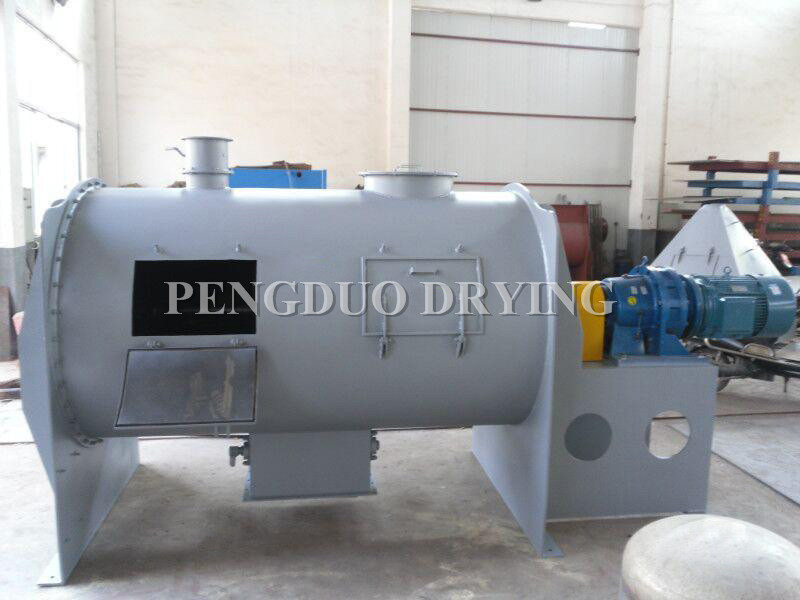

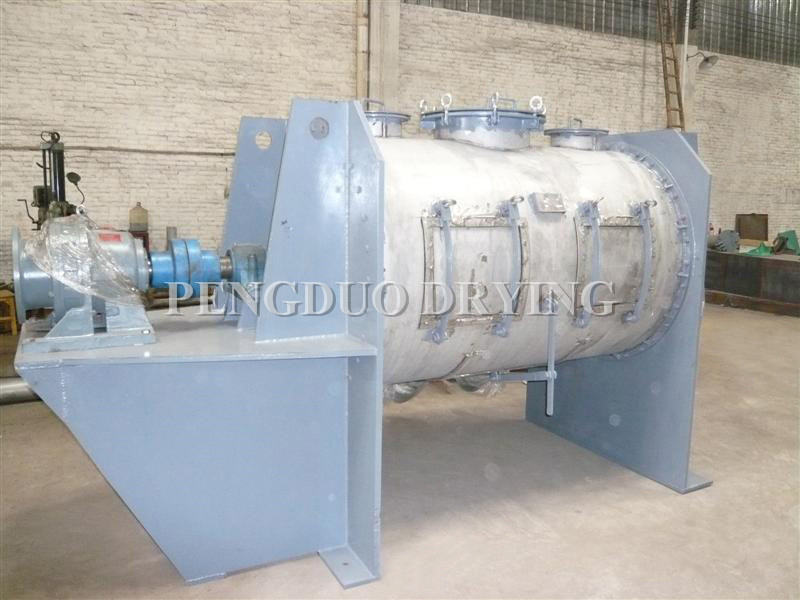

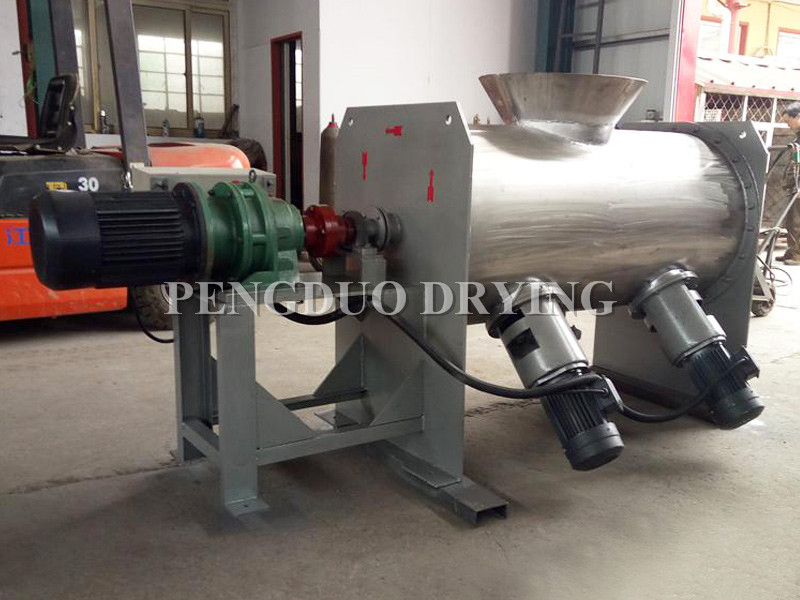

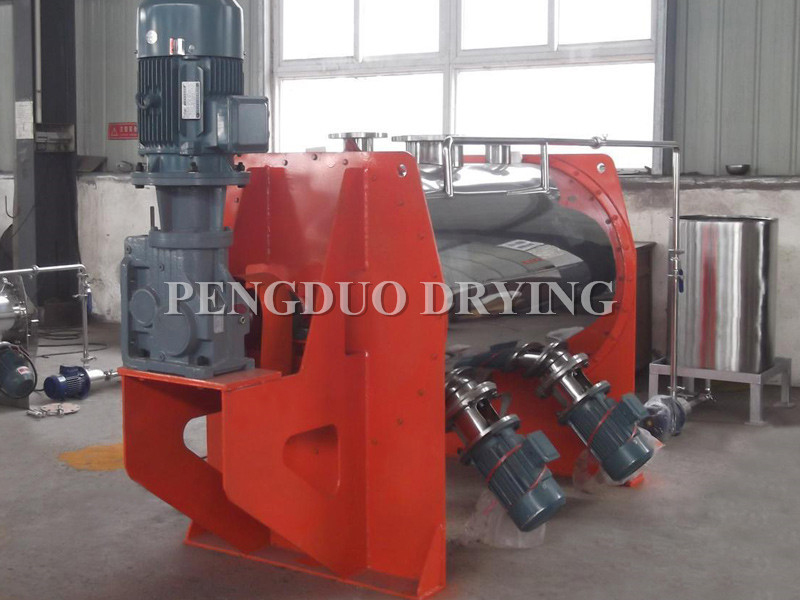

LDH Plough Mixer

This model consists of four main components: the drive mechanism, horizontal cylinder, plough blades, and high-speed chopper blades. Under the action of the plough blades, the material flows axially along the inner wall of the cylinder. When the material passes through the high-speed rotating chopper blades, it is thrown and dispersed, achieving uniform mixing in a short time.

Model:
LDH

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Product Features

Applicable for composite processes like wet granulation and drying. Particularly ideal for mixing viscous or paste-like additives.

Applications

Suitable for solid-solid (powder-powder) and solid-liquid (powder with small amounts of liquid) mixing in industries such as:

● Chemicals

● Pharmaceuticals

● Veterinary drugs

● Food

● Feed & feed additives

● Plastics

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Model / Specification	LDH-0.1	LDH-0.3	LDH-0.5	LDH-1	LDH-2	LDH-4	LDH-6	LDH-8	LDH-10	LDH-12	LDH-15
Batch Mixing Capacity (kg)	40-60	120-180	200-300	400-600	800-1200	1600-2400	2400-3600	3200-4800	4000-6000	4800-7200	6000-9000
Installed Power (kW)	3.7	7.7	8.5	15.5	23	28	33	37	41	48	56
Equipment Weight (kg)	430	950	1100	1800	2520	3220	6750	7200	7500	8500	9200
