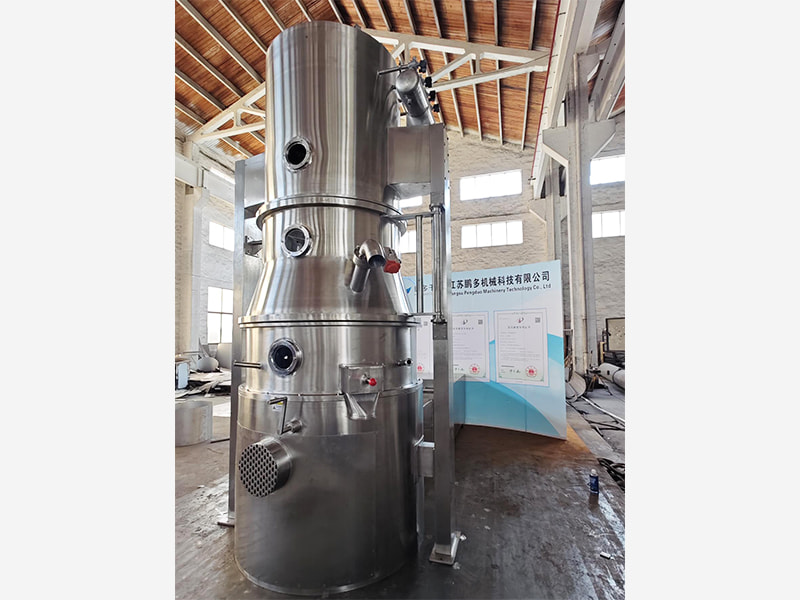

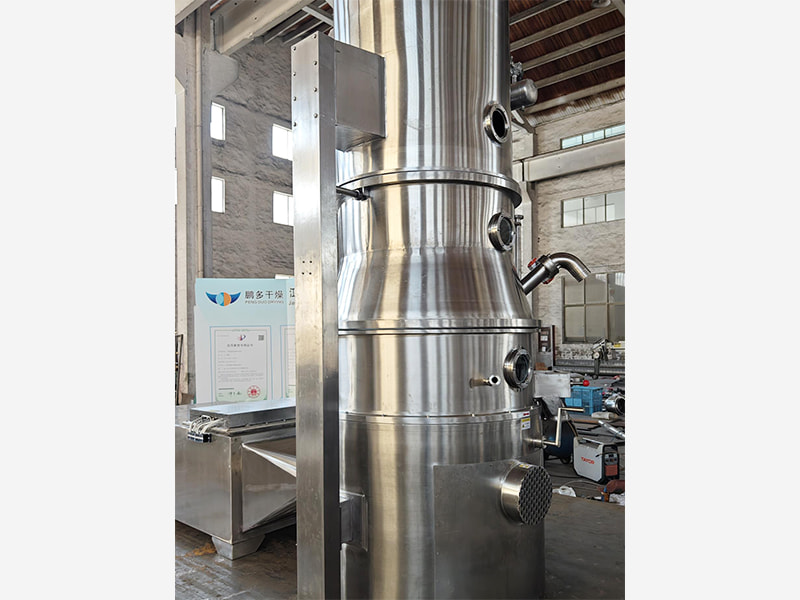

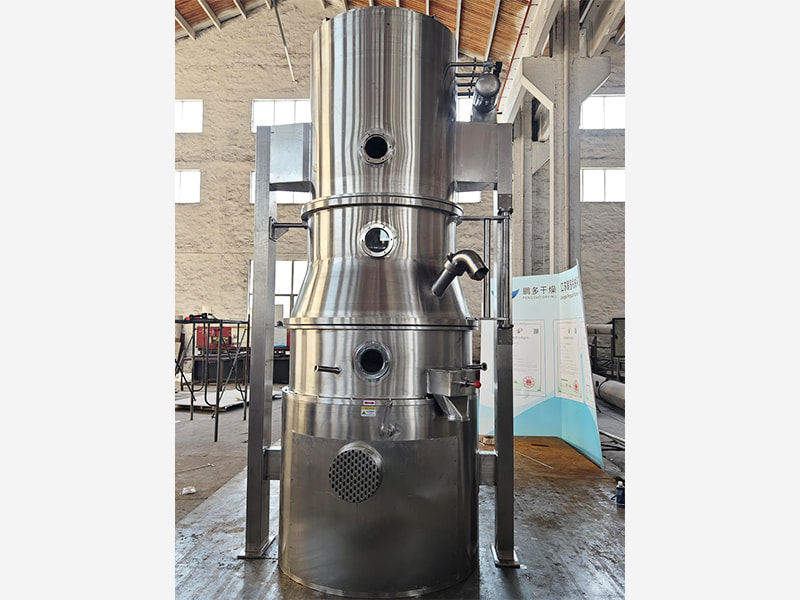

FXL Rotary Fluid Bed Pelletizer

The FXL Pelletizer is a specialized tangential spray rotary fluidized bed system designed for pelletization, powder coating, and encapsulation. For production capacities below 60kg, this equipment can be integrated with top-spray and bottom-spray systems, functioning as the DPL Multi-Purpose Machine.

Model:
FXL

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

|

Product Features

◆ Adjustable gap settings

◆ Interchangeable turntables

◆ Easy loading/unloading of materials

◆ Precision powder dosing system

◆ Dual-fluid nozzle design

◆ Intelligent control interface

|

Applications

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

|

Parameters

Item			Model
Item		Unit	1/3	5/15	30	60	100	200
Total volume		L	4.5	30	60	105	180	430
Diameter of rotary disc		L	300	480	620	790	1000	1400
POwer	Flat disc	KW	0.55	1.5	4.0	5.5	7.5	11.0
	Dimpled Disc	KW	0.75	2.2	5.5	7.5	11	15
Fan	Air velocity	M3/h	580	750	1500	3000	4500	6000
	Pressure	Pa	4680	5697	5697	7236	9000	9000
	Motor	KW	3	5.5	7.5	15	22	27
Electric heater	Electric power	V	380
	Electric power	KW	21	27	54	108	163	216
	Pressure of steam	Mpa	0.4
	Consumption	Kg/h	35	42	84	166	250	332
Compressed air	Pressure	Mpa	0.6
	Consumption	M3/min	0.9	1.1	1.1	2.0	2.0	3.0
No.s of nozzle		PCS	1	2	2-3	3	3	3-6
Dimensions mm	A		2600	3200	3480	3820	4160	4575
	B		1650	1900	2200	2800	3200	3560
	C		250	250	250	300	300	300
	D		520	620	840	1015	1325	1640
	E		300	480	620	790	1000	1400
