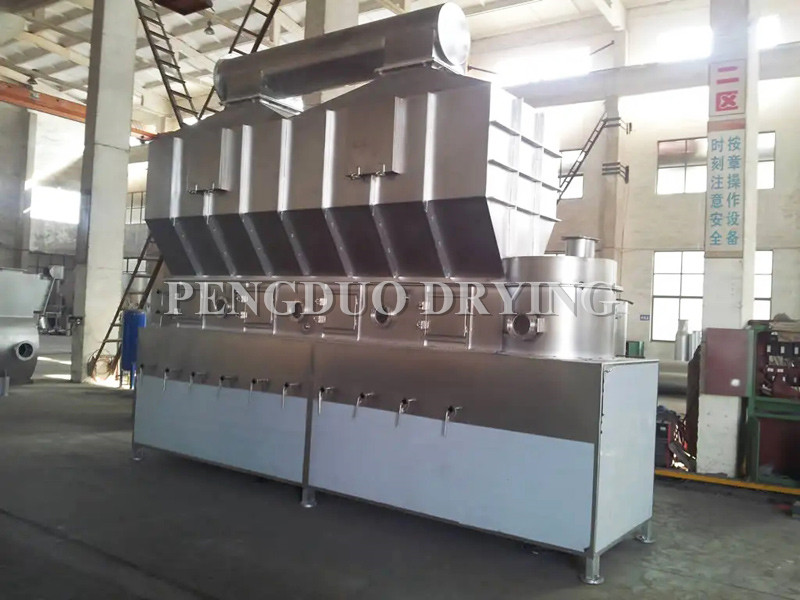

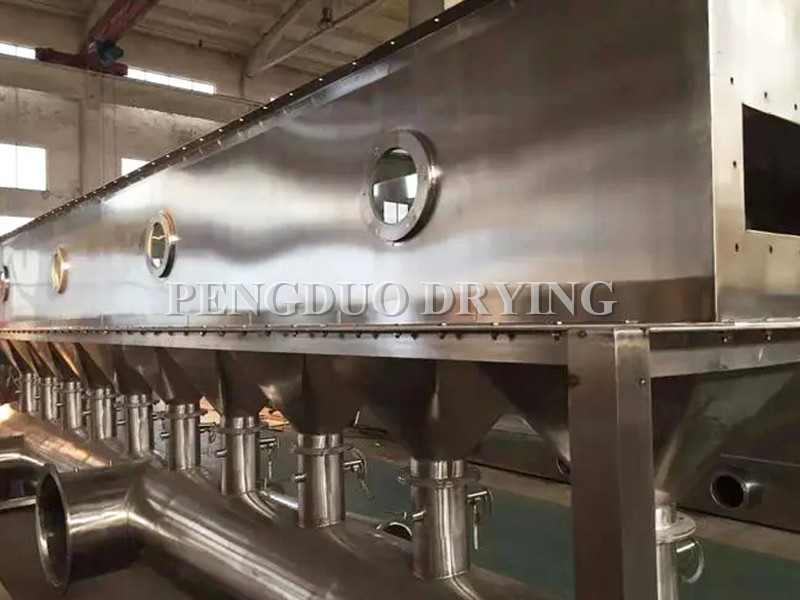

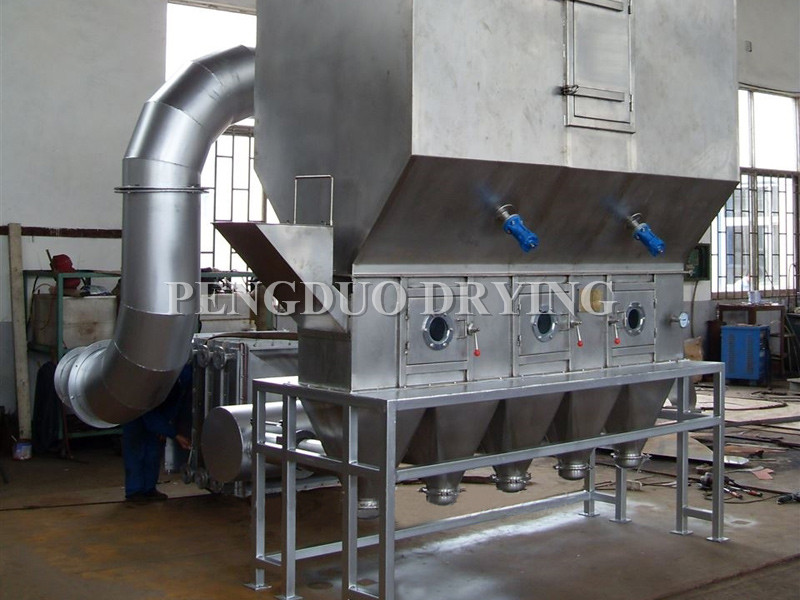

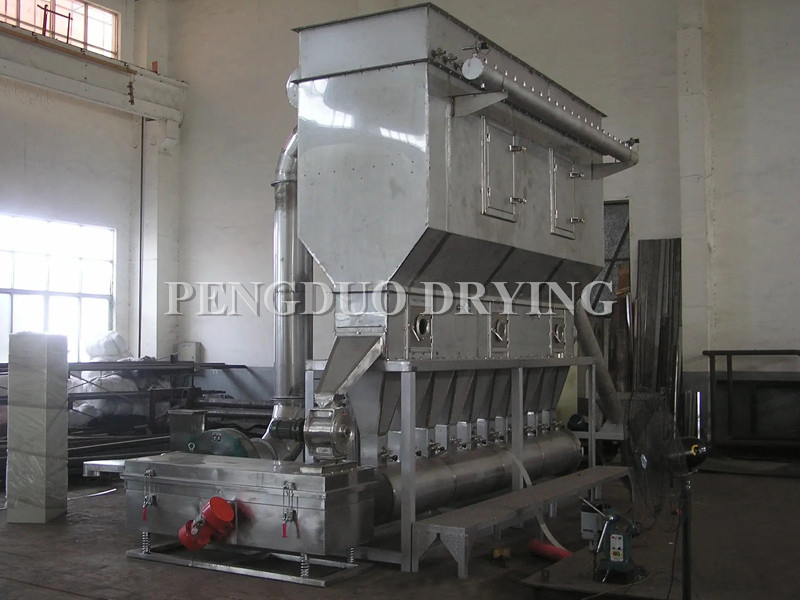

XF Horizontal Fluidized Bed Dryer

Fluidized bed dryer, also known as fluidization drying, consists of air filter, heater, main fluidized bed chamber, cyclone separator, bag filter, high-pressure centrifugal fan, and control panel. Depending on the material properties, the dust collection system can be customized—either a cyclone separator, a bag filter, or both. For denser materials (e.g., granules and pellets), a cyclone separator suffices, while lighter powders require an additional bag filter. Optional feeding systems include pneumatic conveying or belt transport.

Model:
XF

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Raw granular material is fed into the dryer via a feeder. Filtered and heated air is blown through the bed's distribution plate, fluidizing the solids for efficient heat/mass transfer by blast fan. Dried product discharges from the outlet, while exhaust air passes through cyclones and bag filters to recover fines before exhaust out.

Steam, electricity, or hot air furnace (customizable).

|

Product Features

Purified hot air enters the chamber, suspending wet material in a fluidization state for uniform drying. Intense gas-solid contact accelerates heat/mass transfer, achieving drying in seconds to minutes. Continuous working feature automated in-feed and discharge for non-stop processing. Operates under negative pressure for dust control. High-speed drying with controlled low temperatures guarantees consistent product quality. Meets GMP requirements.

|

Applications

Pharmaceuticals (APIs, tablet granules, TCM extracts)

Food (health supplements, beverage powders, corn germ)

Chemicals (plastic resins, citric acid)

Feed & agro-materials

Particle Size: 0.1–6 mm (optimal: 0.5–3 mm).

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

|

Parameters

Specification and model	XF0.25X1	XF0.25X2	XF0.25X3	XF0.25X6	XF0.3X2	XF0.3X4	XF0.3X6	XF0.3X8	XF0.3X10	XF0.4X4	XF0.4X6
Technical parameter	XF0.25X1	XF0.25X2	XF0.25X3	XF0.25X6	XF0.3X2	XF0.3X4	XF0.3X6	XF0.3X8	XF0.3X10	XF0.4X4	XF0.4X6
Bed area (m²)	0.25	0.5	1	1.5	0.6	1.2	1.8	2.4	3	1.6	2.4
Drying capacity (kg H₂O/h)	10=15	20-25	30-45	52-75	-30	42-60	63-90	84-120	105-150	56-80	84
Fan power (kw)	5.5	7.5	15	22	7.5	18.5	30	37	48	30	37
Inlet air temperature (oC)	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140
Material temperature (oC)	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60
Overall dimension (main engine) long × wide × high (m)	1 × 0.6 × 3.35	2 × 0.6 × 3.35	4 × 0.6 × 3.35	6 × 0.6 × 3.35	2 × 0.70 × 3.4	4 × 0.7 × 3.4	6 × 0.7 × 3.4	8 × 0.7 × 3.4	10 × 0.7 × 3.4	4 × 1 × 3.58	6 × 1 × 3.58
Area covered (m²)	18	25	35	40	25	38	45	56	70	18	56
Specification and model	XF0.4X8	XF0.4X10	XF0.4X12	XF0.5X4	XF0.5X6	XF0.5X8	XF0.5X10	XF0.5X12	XF0.5X14	XF0.5X16	XF0.5X18
Technical parameter	XF0.4X8	XF0.4X10	XF0.4X12	XF0.5X4	XF0.5X6	XF0.5X8	XF0.5X10	XF0.5X12	XF0.5X14	XF0.5X16	XF0.5X18
Bed area (m²)	3.2	4	4.8	2	3	4	5	6	7	8	9
Drying capacity (kg H₂O/h)	112-160	140-200	168-240	70-100	140-200	140-200	175-250	210-300	245-350	280-400	315-450
Fan power (kw)	44	66	66	30	66	66	90	90	150	150	165
Inlet air temperature (oC)	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140
Material temperature (oC)	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60
Overall dimension	8 × 1 × 3.58	10 × 1 × 3.58	12 × 1.2 × 4.1	4 × 1.2 × 4.1	8 × 1.2 × 4.1	8 × 1.2 × 4.1	10 × 1.2 × 4.1	12 × 1.2 × 4.1	14 × 1.2 × 4.1	16 × 1.2 × 4.1	18 × 1.2 × 4.1
long × wide × high (m)	8 × 1 × 3.58	10 × 1 × 3.58	12 × 1.2 × 4.1	4 × 1.2 × 4.1	8 × 1.2 × 4.1	8 × 1.2 × 4.1	10 × 1.2 × 4.1	12 × 1.2 × 4.1	14 × 1.2 × 4.1	16 × 1.2 × 4.1	18 × 1.2 × 4.1
Area covered (m²)	74	82	96	50	70	82	100	140	180	225	268
