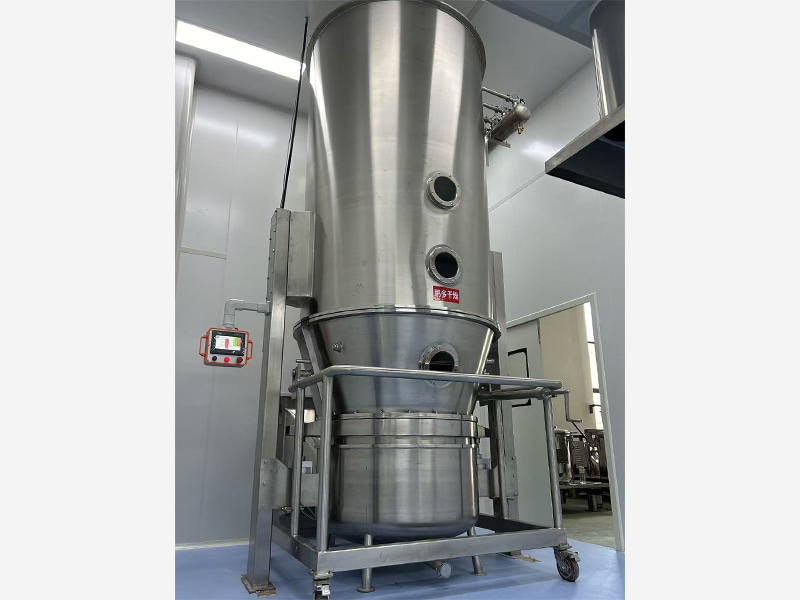

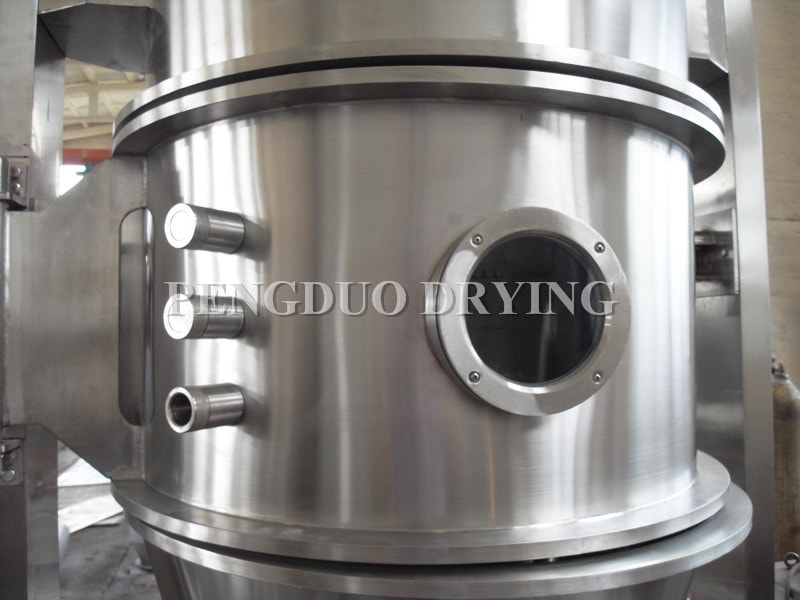

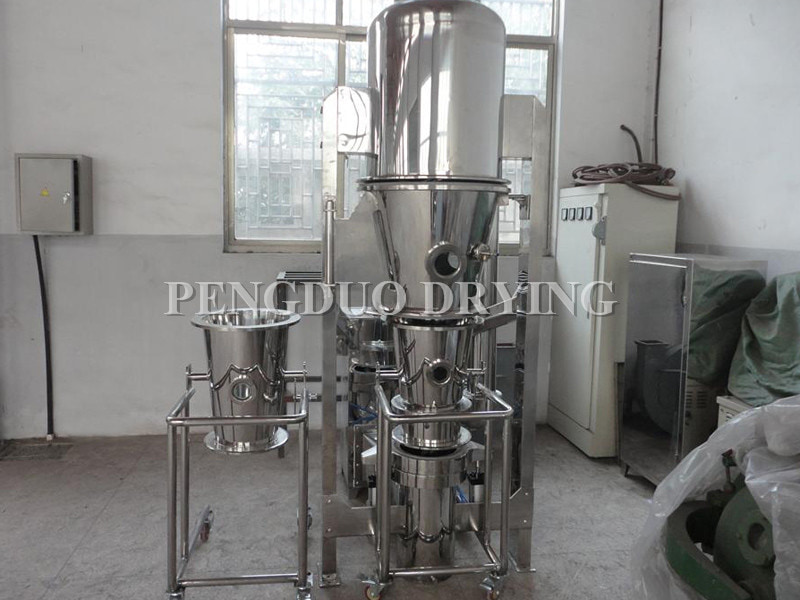

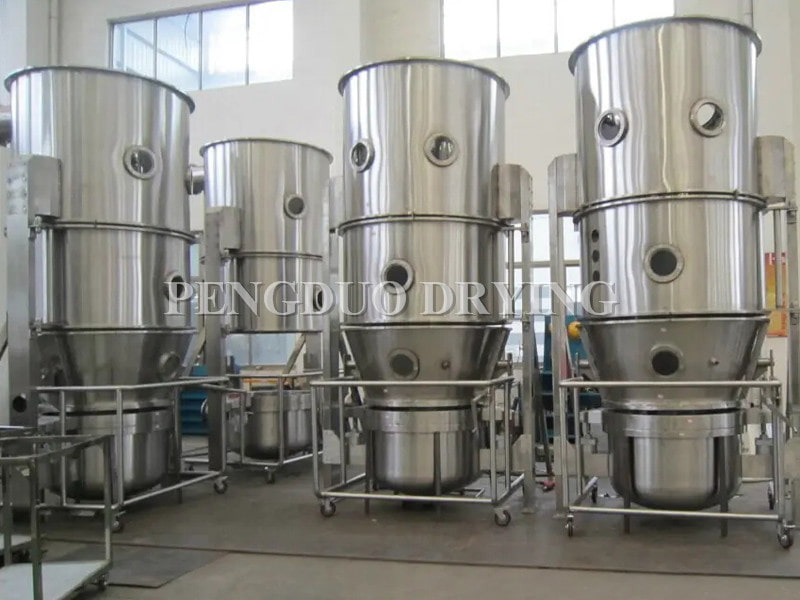

FG Vertical Fluidized Bed Dryer

The purified and heated air is drawn in by a suction fan from the bottom, passing through the perforated mesh plate of the material hopper. Inside the working chamber, the combined effects of stirring and negative pressure create a fluidized state. Moisture rapidly evaporates and is carried away by the exhaust air, resulting in efficient drying of the material.

Model:
FG

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Product Features

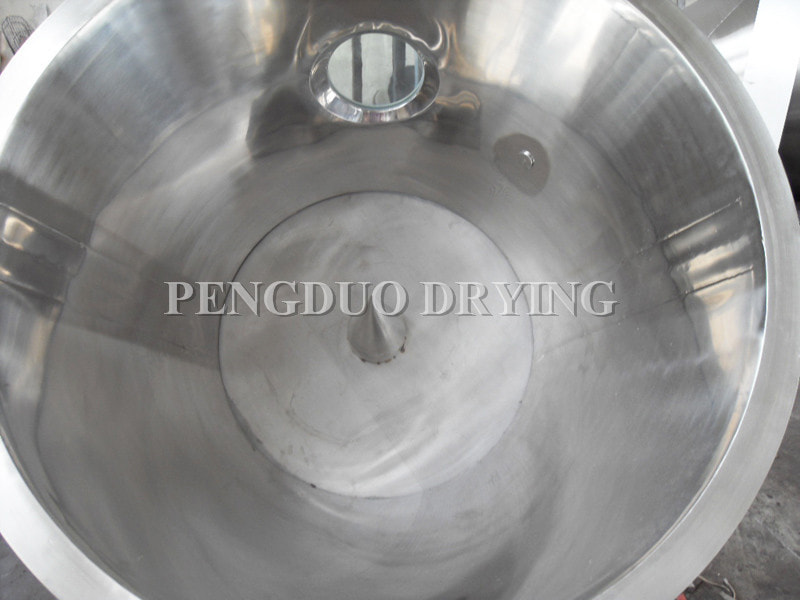

Circular Fluidized Bed Design – Round structure eliminates dead corners for uniform drying.

Anti-static filter material is adopted to ensure operational safety.

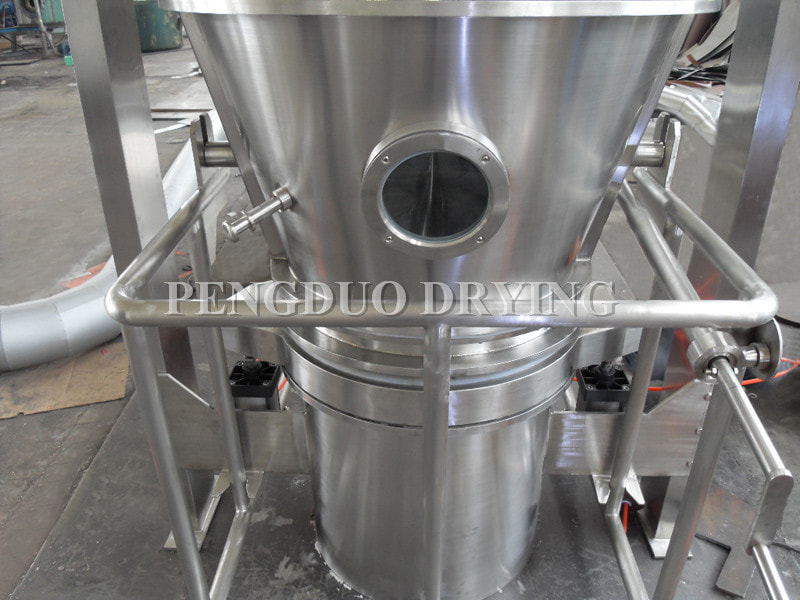

Tilting Discharge Mechanism –Enables fast and thorough unloading; automatic loading/unloading systems can be customized upon request.

Sealed Negative-Pressure Operation – Filtered airflow ensures safety and hygiene. Simple to operate and easy to clean.

Applications

Ideal for drying powders & granules in pharma, food, and chemical industries.

Pharmaceutical

Food Manufacturing

Chemical Industry

Parameters

Item	Type
Feeding(kg)	FG-60	FG-120	FG-150	FG-200	FG-300	FG-500	FG-1000
Fan power(kw)	7.5	15	18.5	22	30	45	75
Mixing power(kw)	0.55	1.1	1.1	1.1	1.5	2.2	2.2
Mixing speed(rpm)	8～11
Steam consumption(kg/h)	141	170	240	282	366	451	800
Operation time(min)	15-30（Depend on material characteristics）
Host height	2700	2900	2900	2900	3300	3500	5800

Pengduo is a leading provider of innovative, customized drying and processing solutions for Pharma, Food, Biotech, Feed, and Chemical industries, offering reliable global support and sustainable technology.
