EYH Two Dimensions Mixer

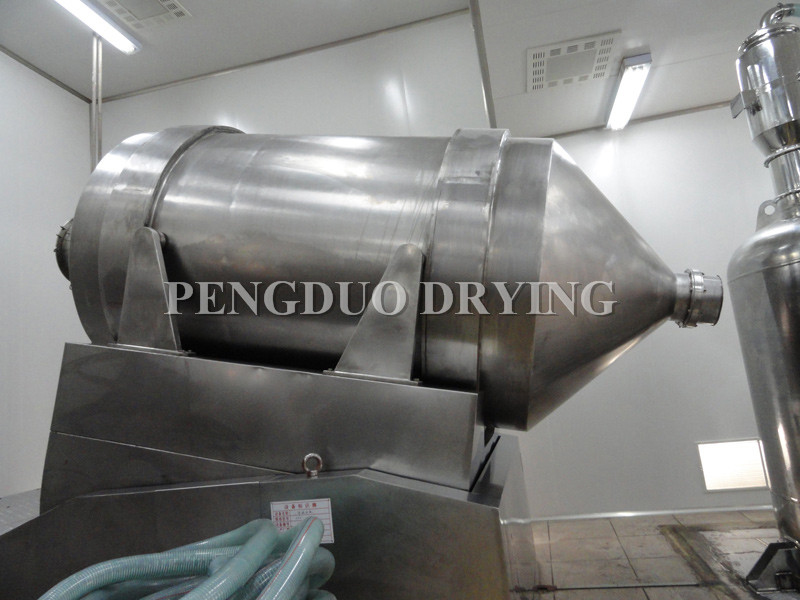

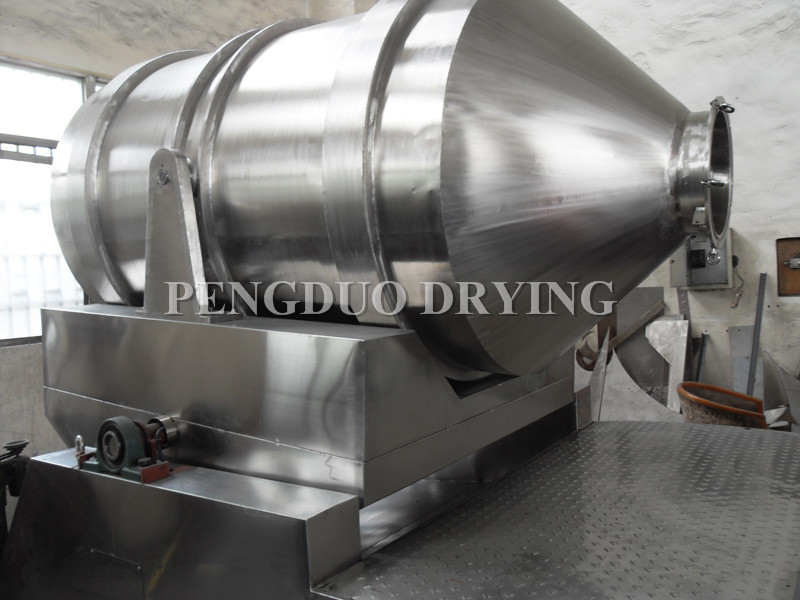

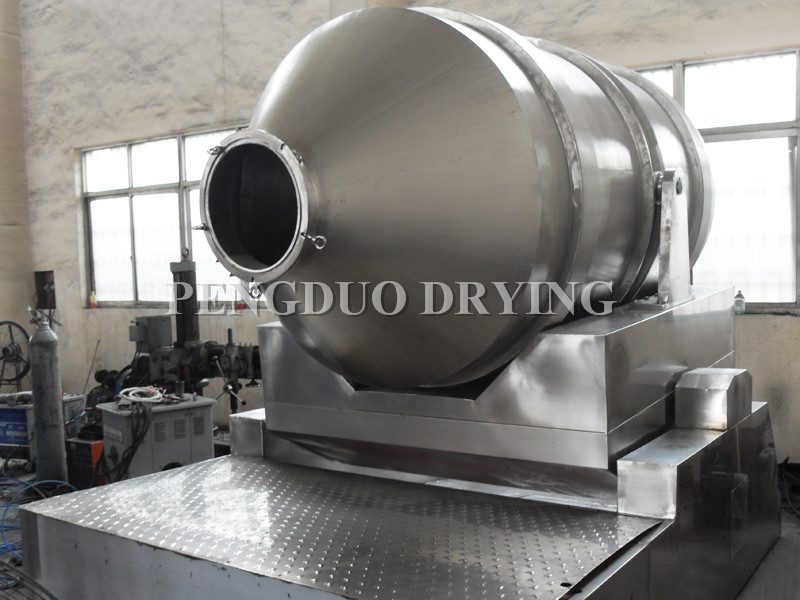

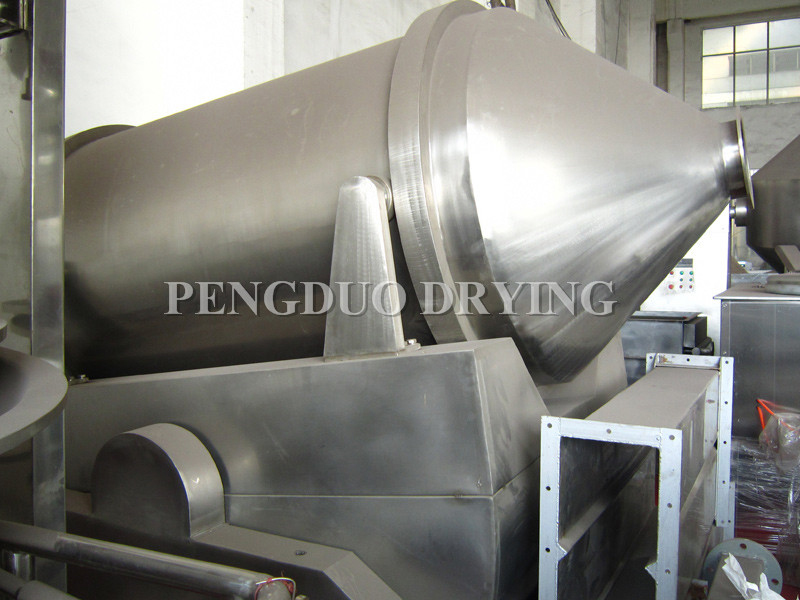

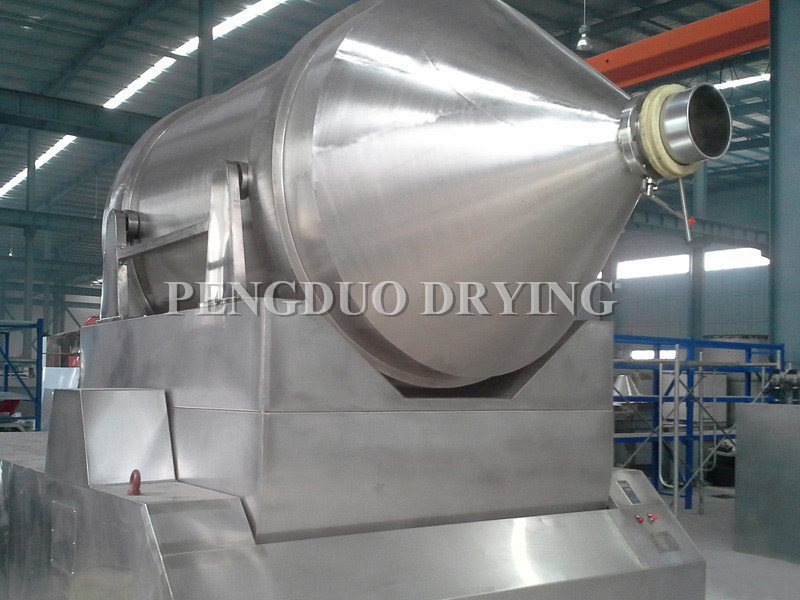

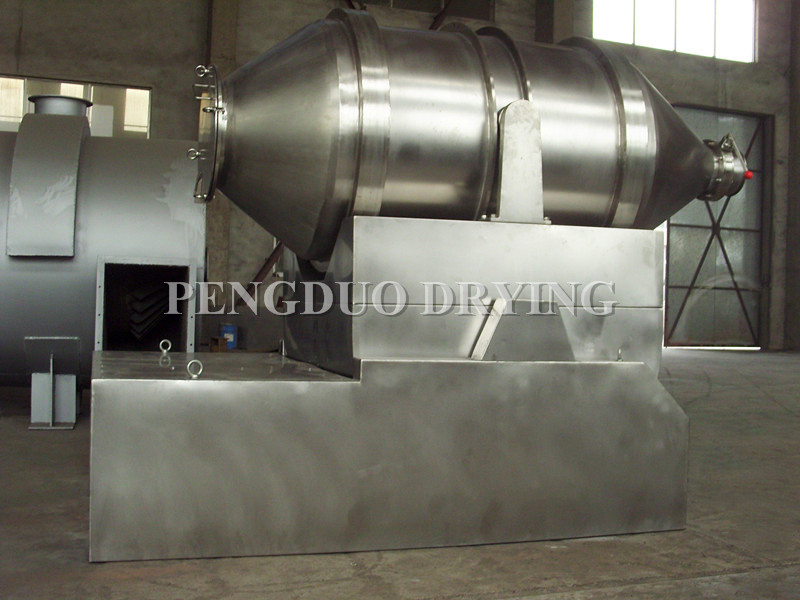

The EYH two-dimensional mixer consists of three main components: the rotating drum, swing frame, and machine base. The drum is mounted on the swing frame, supported by four rollers with two retaining wheels providing axial positioning. Among the four support rollers, two are drive rollers powered by the rotation system to generate drum movement. The swing frame is driven by a crank-rocker mechanism mounted on the machine base, with the entire swing assembly supported by bearing components.

Model:
EYH

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Product Features

The drum of EYH two-dimensional mixer performs two simultaneous motions:

Rotational movement of the drum itself

Pendulum swing movement of the drum with the swing frame

During operation:

Materials undergo tumbling and mixing through drum rotation

Simultaneous left-right blending occurs through the swinging motion

Combined action ensures thorough material homogenization in minimal time

Applications

Ideal for processing various powder and granular materials across industries including pharmaceuticals, chemicals, and food production.

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Model	Volume (L)	Loading Coefficient	Loding capacity (kg)	Dimensions (mm)						Power (kW)
Model	Volume (L)	Loading Coefficient	Loding capacity (kg)	A	B	C	D	M	H	Driving	Swing
EYH100	100	0.5	40	860	900	200	400	1000	1500	1.1	0.75
EYH300	300	0.5	75	1000	1100	200	580	1400	1650	1.1	0.75
EYH600	600	0.5	150	1300	1250	240	720	1800	1850	1.5	1.1
EYH800	800	0.5	200	1400	1350	240	810	1970	2100	1.5	1.1
EYH1000	1000	0.5	350	1500	1390	240	850	2040	2180	2.2	1.5
EYH1500	1500	0.5	550	1800	1550	240	980	2340	2280	3	1.5
EYH2000	2000	0.5	750	2000	1670	240	1100	2540	2440	3	2.2
EYH2500	2500	0.5	950	2200	1850	240	1160	2760	2600	4	2.2
EYH3000	3000	0.5	1100	2400	1910	280	1220	2960	2640	5	4
EYH5000	5000	0.5	1800	2700	2290	300	1440	3530	3000	7.5	5.5
EYH10000	10000	0.5	3000	3200	2700	360	1800	4240	4000	15	11
EYH12000	12000	0.5	4000	3400	2800	360	1910	4860	4200	15	11
EYH15000	15000	0.5	5000	3500	3000	360	2100	5000	4400	18.5	15
