Dust Collection Equipment

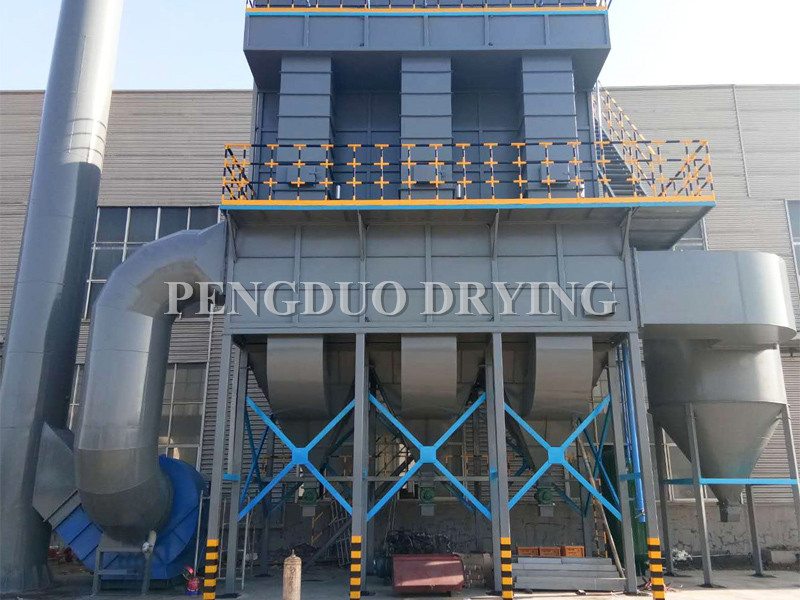

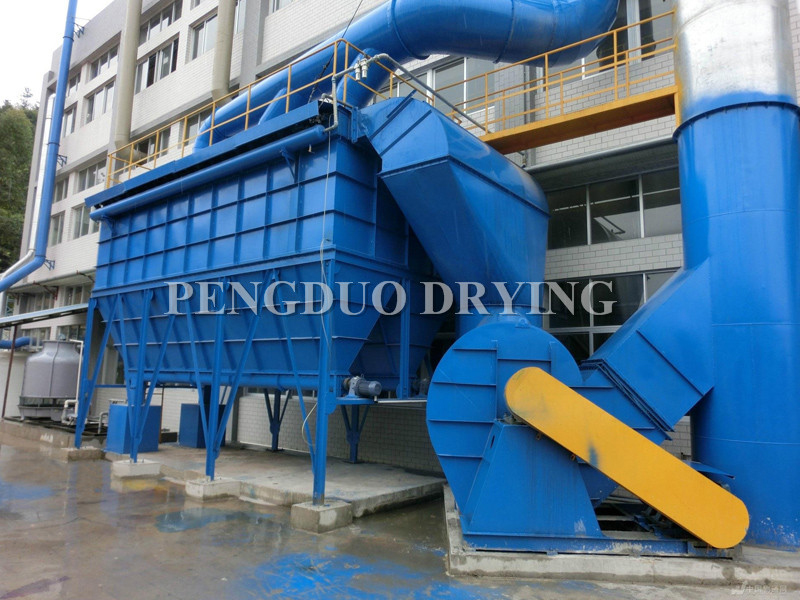

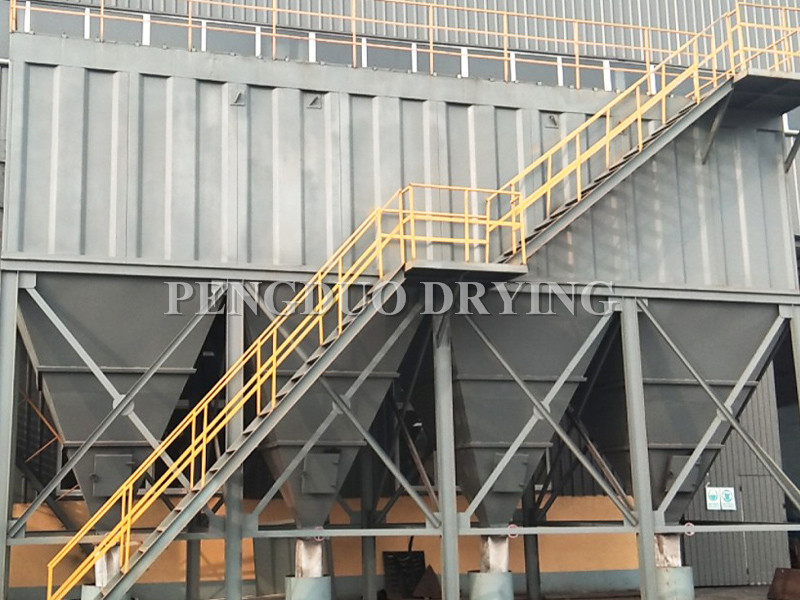

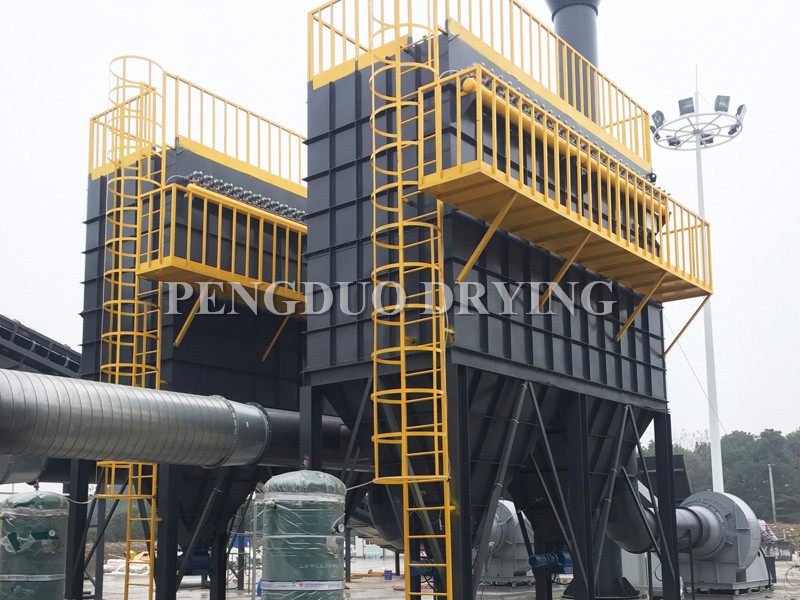

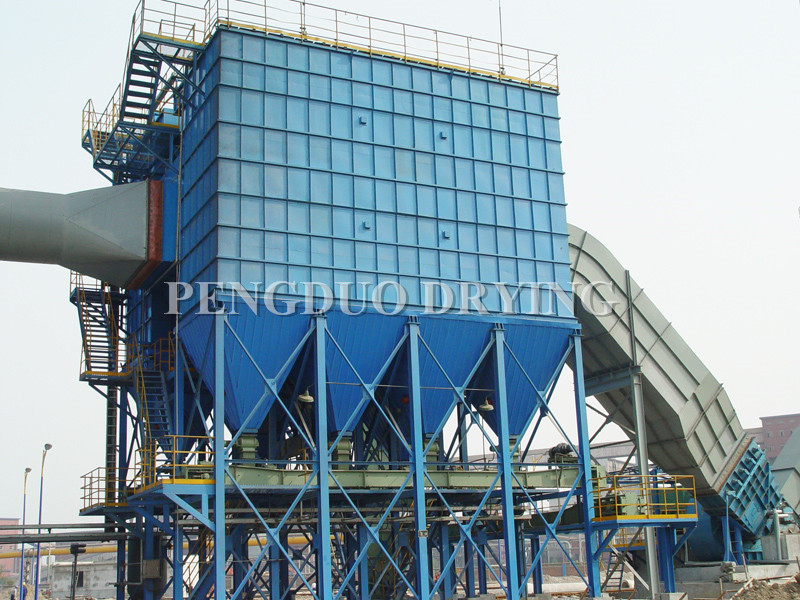

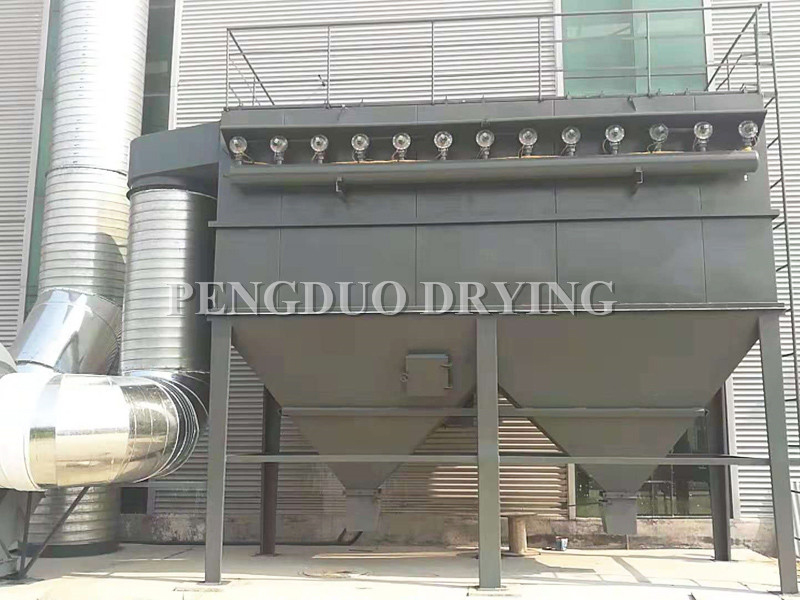

The MF-II Square Pulse Bag Dust Collector is an upgraded version based on the MF-I model. In addition to retaining the advantages of the MF-I—such as high dust removal efficiency, large air handling capacity, stable performance, and easy operation and maintenance—the MF-II further improves upon its predecessor with enhanced performance, reduced dust accumulation, and broader applicability.

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Product Features

High dust removal efficiency, large air handling capacity, stable performance, and easy operation and maintenance.

Applications

It is widely used for ventilation, dust removal, and powder recovery in industries of Pharmaceuticals, Chemicals, Food Processing and Metallurgy.

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Specification	Model
Specification	MF48	MF60	MF72	MF84	MF96	MF108	MF120
Filtration Area (m²)	36.2	45.2	54.3	63.3	72.4	81.4	90.5
No.s of Filter Bags (pcs)	48	60	72	84	96	108	120
Air Filtration Capacity (m³/h)	6510-8680	8130-10840	9770-13000	11400-1520	13000-17370	14650-19530	16290-21700
No.s of Solenoid Valves (pcs)	8	10	12	14	16	18	20
Power (kW)	1.1	1.1	1.1	1.1	1.5	2.2	2.2
Filter Bag Dimensions (mm)	120×2000
Filtration Velocity (m/min)	3-4
Air Leakage Rate (%)	≤5
Pulse Jet Pressure (MPa)	＞0.4-0.6
System Resistance (Pa)	＜1200
Dust Removal Efficiency (%)	≥99.9（Select the appropriate filter material based on dust characteristics.)
