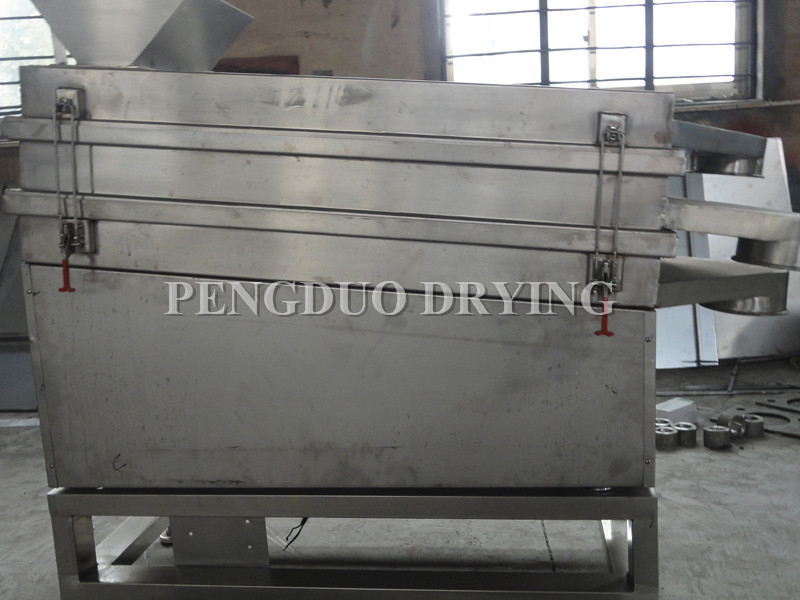

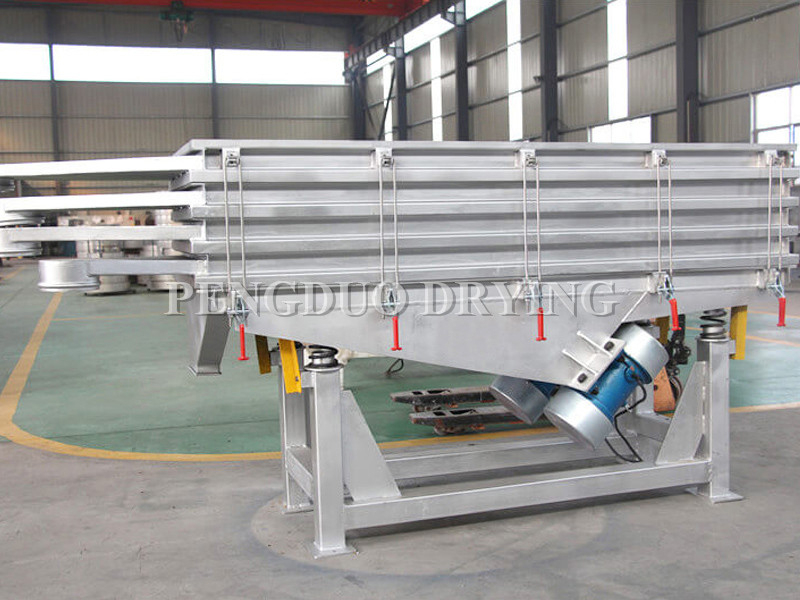

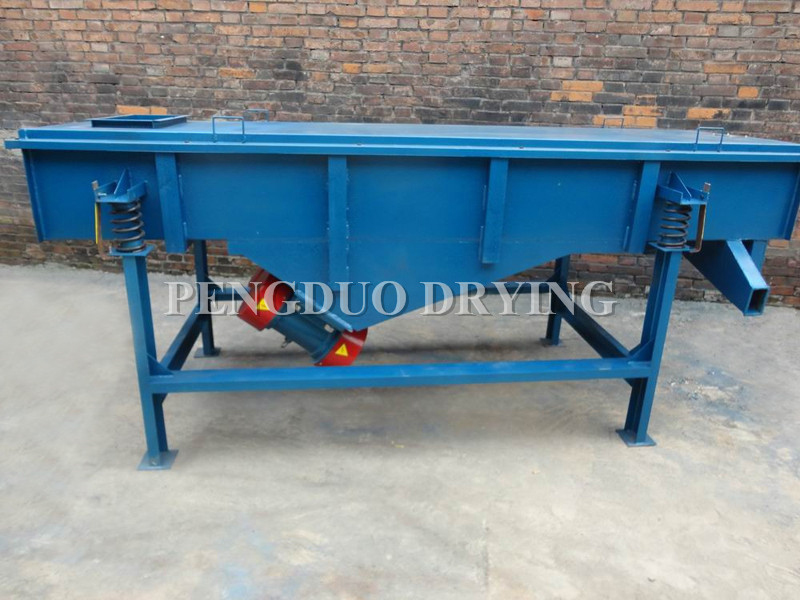

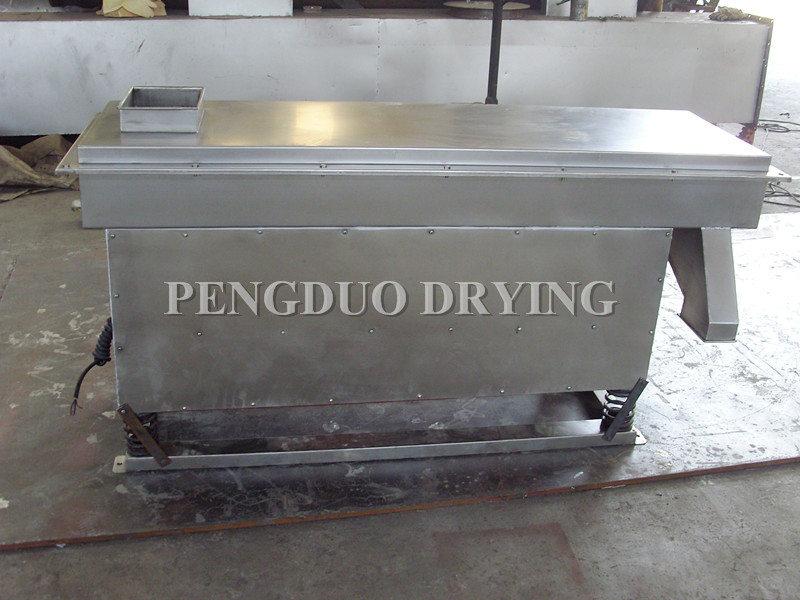

FS Square Vibration Sieve

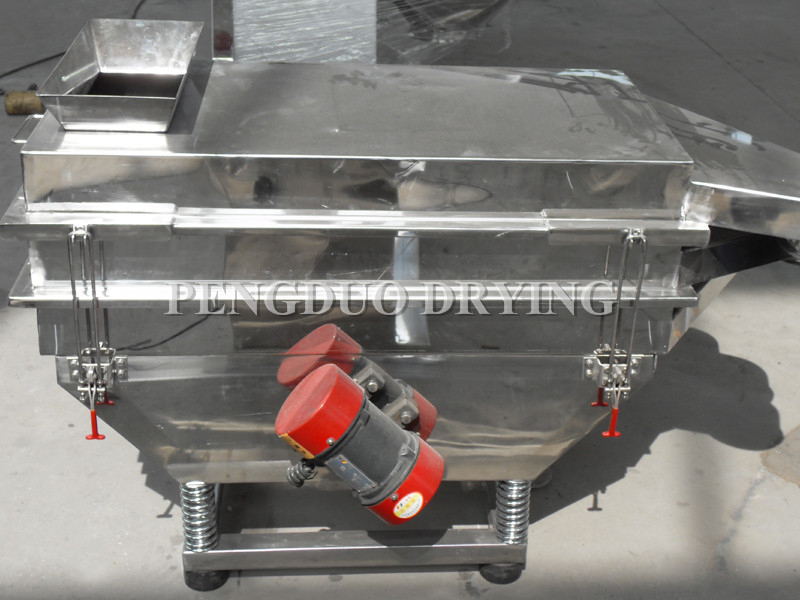

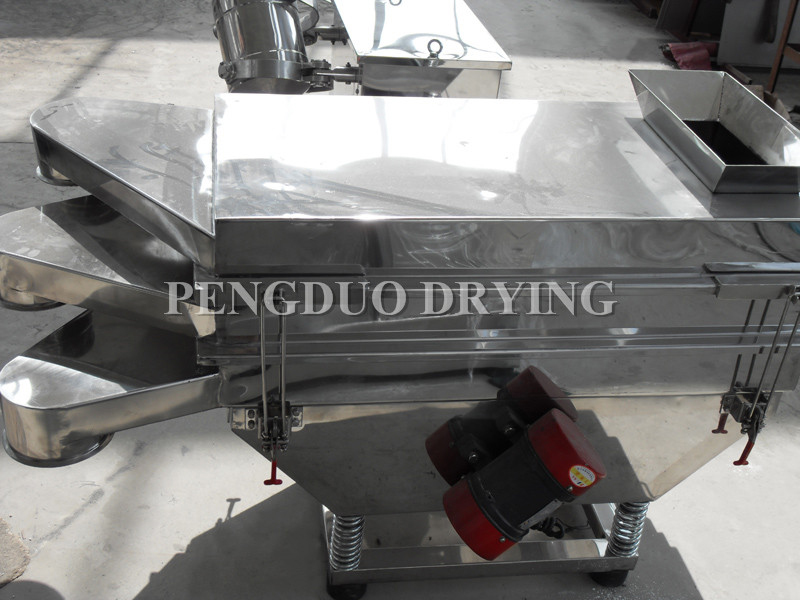

FS Square Vibration Sieve consists of Inlet/outlet ports screen mesh & chamber, Vibration motor (source), and shock absorbers. Rubber shock absorbers. The machine base and screen box are connected by 4-6 sets of soft rubber shock absorbers fixed at both the top and bottom. Upon startup, centrifugal force is generated, and the amplitude is controlled by counterweight blocks (eccentric weights) and shock absorbers, ensuring optimal operational performance. This mechanism facilitates a tossing, vibrating, and loosening screening process for the material.

Model:
FS

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Product Features

✔ Compact design with small footprint

✔ Dust-free operation, fully enclosed structure

✔ Low noise

✔ Energy-efficient, 30% less power consumption vs conventional screens.

✔ Easy maintenance, quick-access components.

Applications

This machine is designed for dry particle mixing in industries of Pharmaceuticals, Chemicals, Food Processing, Metallurgy and Electronics.

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Model	Capacity (kg/h)	Sieve Mesh (mesh)	Motor Power (kw / h)	Vibration Frequency (r/min)	Excitation Force (kn）	Upper Outlet Height (mm)	Middle Outlet Height (mm)	Lower Outlet Height (mm)	Dimensions (L×W×H)
FS-0.5M2	450	2-150	0.2×2	1400	0-2.5×2	800	680	500	1300×770×1060
FS-0.7M2	650	2-150	0.2×2	1400	0-2.5×2	850	750	530	1700×680×1100
FS-0.8M2	750	2-150	0.2×2	1400	0-2.5×2	850	750	530	1600×830×1150
FS-1.2M2	1100	2-150	0.2×2	960	0-5×2	880	760	520	1900×980×1220
