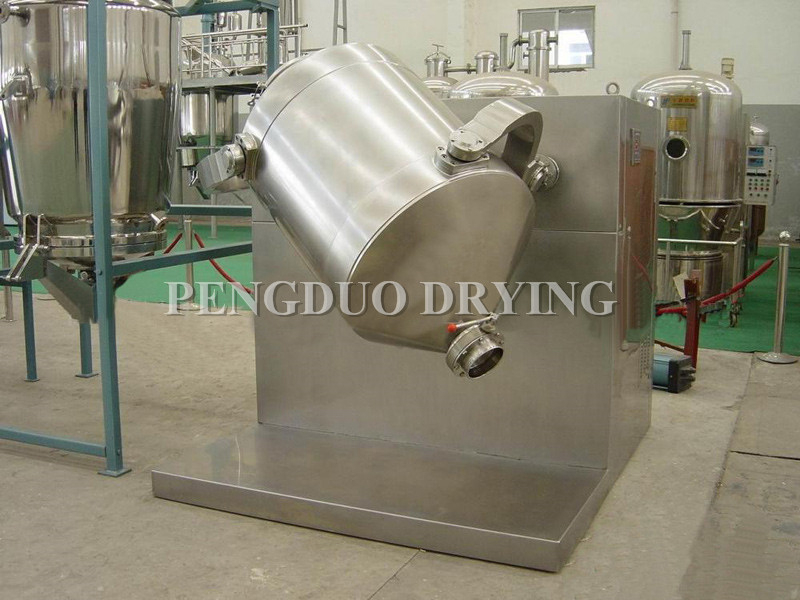

SYH Three Dimensions Mixer

The multi-directional movement of the mixing drum creates numerous cross-mixing points for materials inside the drum, achieving highly efficient mixing with uniformity exceeding 99.9%.

Model:
SYH

Quantity:
Availability:





Inquire

Product Features

Applications

Parameters

Product Features

Driven by the main shaft, the loaded drum performs complex cyclic movements including translation, rotation, and tumbling. This induces three-dimensional composite motion in the materials, facilitating mutual flow, diffusion, accumulation, and intermixing to achieve homogeneous blending.

Applications

◎ Multi-directional motion without centrifugal force, eliminating specific gravity segregation, layering, or accumulation. Capable of mixing components with significant weight ratios, making it one of the most ideal mixers available.

◎ High loading capacity up to 90% (compared to 50% in conventional mixers), ensuring high efficiency and short mixing time.

◎ Smooth rounded transitions throughout the drum interior, with precision polishing for optimal performance.

Pharmaceutical

Food Manufacturing

Feed

Chemical Industry

Parameters

Model	SYH-5	SYH-15	SYH-50	SYH-100	SYH-200	SYH-400	SYH-600	SYH-800	SYH-1000	SYH-1200	SYH-1500	SYH-2000
Drum Volume (L)	5	15	50	100	200	400	600	800	1000	1200	1500	2000
Max. Loading Volume (L)	4.5	13.5	45	90	180	360	540	720	900	1080	1350	1800
Max. Loading Weight (kg)	1.5-2.7	4-8.1	15-27	30-54	50-108	100-216	150-324	200-432	250-540	300-648	400-810	500-1080
Main Shaft Speed (r/min)	0-20	0-20	0-20	0-20	0-15	0-15	0-13	0-10	0-10	0-9	0-9	0-8
Motor Power (kw)	0.25	0.37	1.1	1.5	2.5	4	5.5	7.5	11	11	15	18.5
Dimensions (mm)	600 × 1000 × 1000	800 × 1200 × 1000	1150 × 1400 × 1000	1250 × 1800 × 1550	1450 × 2000 × 1550	1650 × 2200 × 1550	1850 × 2500 × 1750	2100 × 2650 × 2000	2150 × 2800 × 2100	2000 × 3000 × 2260	2300 × 3200 × 2500	2500 × 3500 × 2800
Weight (kg)	100	200	300	800	1200	1200	1500	1700	1800	2000	2400	3000
